Good looking out on the radiator. I'll have to pick up some mesh to protect it.
Project Karma
- Thread starter Tahoedonner
- Start date
Good looking out on the radiator. I'll have to pick up some mesh to protect it.
customtronic
New member
Just read all 9 pages of the build. Thanks for making me late for work! Haha truck looks awesome!!!!
DocG
Member
I really like the grounding block idea. After my truck was painted I had a lot of trouble getting my lights to ground, horn too. I ended up putting a star washer behind one screw in each light to dig in, but now I'm worried about rust... Like that is the only rust area I should be worried about. Thanks for page 9. No more rat pics please...
Tahoedonner
Member
I know the feeling. I've missed many hours of work reading posts and working on the truck. Good thing I'm in sales and don't have an office to report to. Also pretty sure my boss doesn't know about this blog.
I really like the grounding block idea. After my truck was painted I had a lot of trouble getting my lights to ground, horn too. I ended up putting a star washer behind one screw in each light to dig in, but now I'm worried about rust... Like that is the only rust area I should be worried about. Thanks for page 9. No more rat pics please...
Thx doc. I slathered the holes and blocks with dielectric grease which should help with corrosion. I promise no more rat pics. Congrats on getting the rig back from the shiesty painter.
Tahoedonner
Member

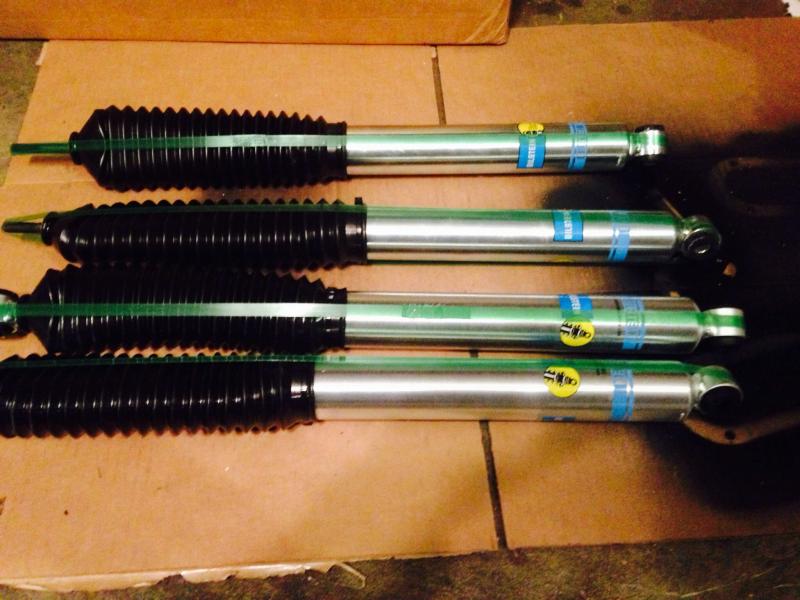

Shocks are here. Picked up some 10" travel Bilstein 5100's from IHPA for both the front and back. Once I can get the original mounts coated with the extreme chassis black I will be installing them. Decided not to go with the Ford shock mounts that I previously purchased for the fronts because this is not going to be a "heavily wheeled" rig. This is going to be much more of an " expedition" style cruiser. Once I reconnect the chewed up spark plug wire, prime the engine, and get these shocks installed I should be able to move my iron under its own power for the first time in 2+ years. Needless to say I'm excited.
Attachments
Last edited:
mikeindustries
Member
Your Scout is looking really good. I like the rims and tires a lot. The rear axle looks really far forward. How far back is it going to move with the axles articulated? Wondering if it would clear if you cut and moved the front mount for the rear springs back like an inch? This would put the rear shackles straight up and down allowing for more drop out too. Just thinking out loud.
Tahoedonner
Member
Just finished checking out your build last night. Looks like you're up to some good stuff.
The rear axle should settle a smidge more rearward once the suspension has settled but I suspect it will still appear more forward than it should. I guess this is a byproduct of lifting these trucks.
Thanks for the reply.
Tahoedonner
Member
Big day yesterday for me. Got the truck running again after the pertronix install. Started right up. Not sure why I waited so long to get it running again but oh well. Here's a video of the start up. She's running really well. Hasn't been timed nor have I set the idle. I'll get to that this week some time. Right now it's idling at about 1100rpm.
https://www.youtube.com/watch?v=9ap_hk7gd4k
Brakes are officially leak free. Still need to be bled some more but they stop the truck okay.
Took the truck for my first ever drive. Here's a video of that. My wife thought she was taping the entire time down the driveway but she forgot to hit record. Exciting for me anyway.
https://www.youtube.com/watch?v=aj98lat2ti8
The transmission wouldn't shift back into gear when I got two doors down and I was a little worried. However I knew the transmission pan had been leaking for 2+ years and all it needed was some more fluid. Added the fluid and it shifted great. Finally got it in my garage so I can start working on it more often. Plus no more worries about varmints moving in.
Couple issues still remain.
Transmission linkage seems to be off by one click I.e. I'm down to neutral when actually I'm in reverse. Drive doesn't click in until the bottom of the pattern. Need to tighten/adjust the linkage for the proper alignment.
Transmission is leaking pretty heavily so I have ordered one of those mopar resealable gaskets that everybody seems to love.

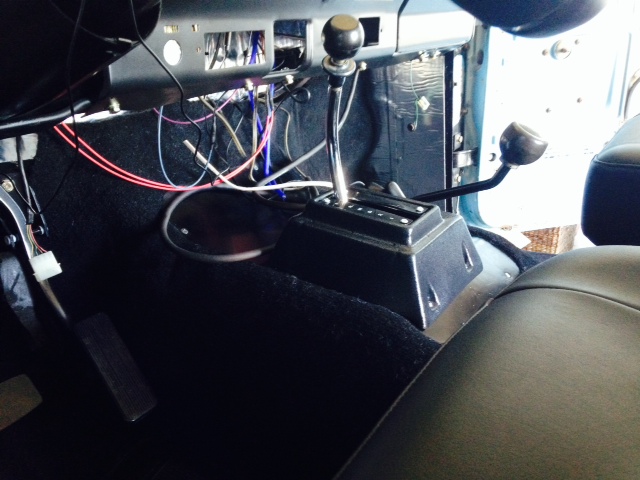

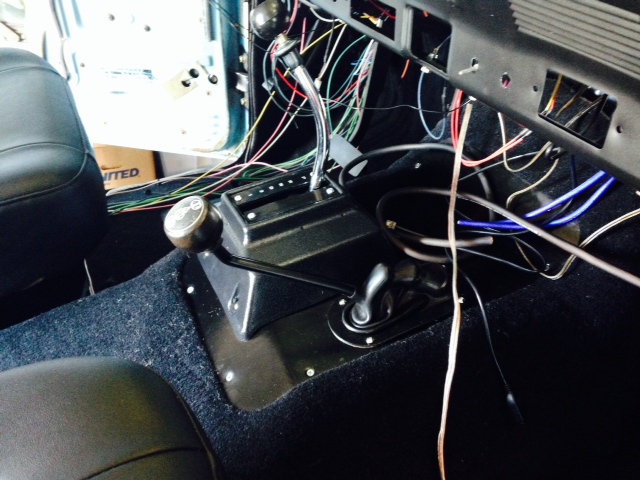

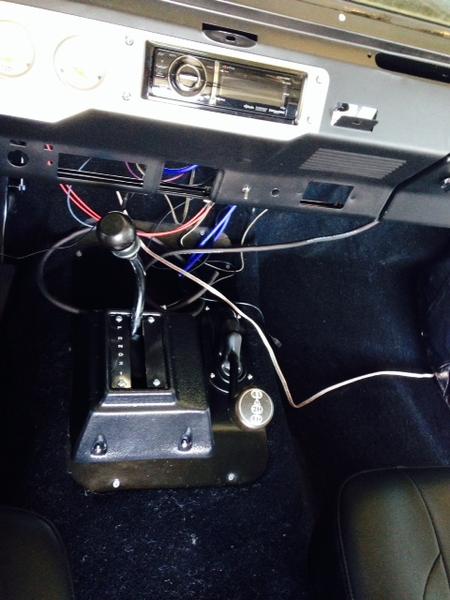

Got the transmission tunnel and gear selector cover installed. Turned out nice. I am going to cover the metal tunnel cover in vinyl when I redo the interior. For now it will stay painted black.
https://www.youtube.com/watch?v=9ap_hk7gd4k
Brakes are officially leak free. Still need to be bled some more but they stop the truck okay.
Took the truck for my first ever drive. Here's a video of that. My wife thought she was taping the entire time down the driveway but she forgot to hit record. Exciting for me anyway.
https://www.youtube.com/watch?v=aj98lat2ti8
The transmission wouldn't shift back into gear when I got two doors down and I was a little worried. However I knew the transmission pan had been leaking for 2+ years and all it needed was some more fluid. Added the fluid and it shifted great. Finally got it in my garage so I can start working on it more often. Plus no more worries about varmints moving in.
Couple issues still remain.
Transmission linkage seems to be off by one click I.e. I'm down to neutral when actually I'm in reverse. Drive doesn't click in until the bottom of the pattern. Need to tighten/adjust the linkage for the proper alignment.
Transmission is leaking pretty heavily so I have ordered one of those mopar resealable gaskets that everybody seems to love.
Got the transmission tunnel and gear selector cover installed. Turned out nice. I am going to cover the metal tunnel cover in vinyl when I redo the interior. For now it will stay painted black.
Attachments
DocG
Member
Man! I'm so excited! I have been waiting you to fire that thing for some time. I'm gald you are working on her again.
I have mine about done except for weather stripping on the doors and have started another 80 for my son. I'm doing more of a beater this time so I can wheel it!
Looks great. Keep up the good work and keep us posted!
I have mine about done except for weather stripping on the doors and have started another 80 for my son. I'm doing more of a beater this time so I can wheel it!
Looks great. Keep up the good work and keep us posted!
Tahoedonner
Member
man! I'm so excited! I have been waiting you to fire that thing for some time. I'm gald you are working on her again.
I have mine about done except for weather stripping on the doors and have started another 80 for my son. I'm doing more of a beater this time so I can wheel it!
Looks great. Keep up the good work and keep us posted!
Thanks doc. Needed the break. Sometimes it's good to clear the mind. Loving your ride by the way.
Tahoedonner
Member

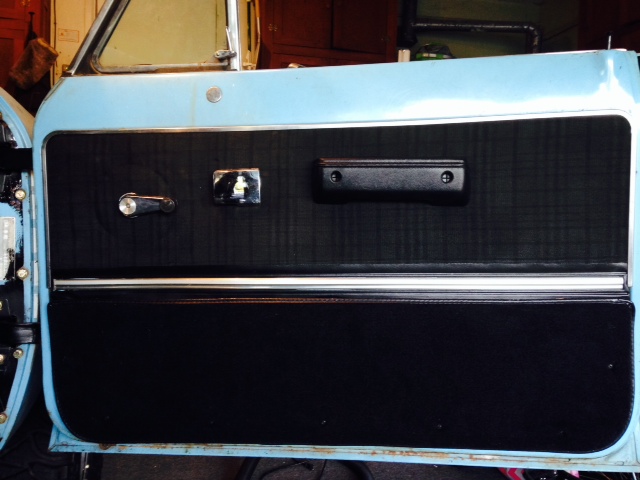

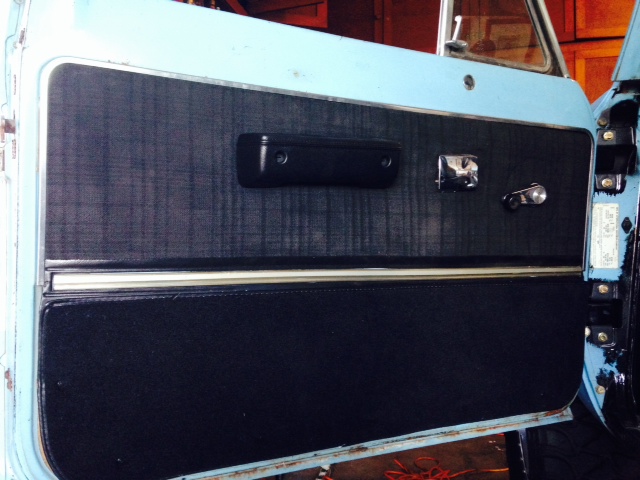

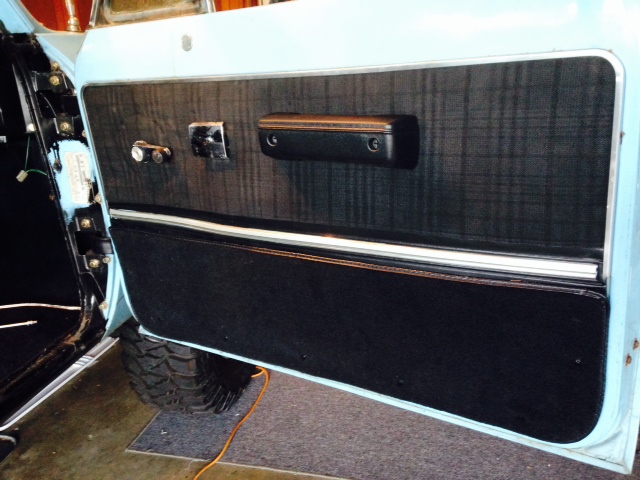

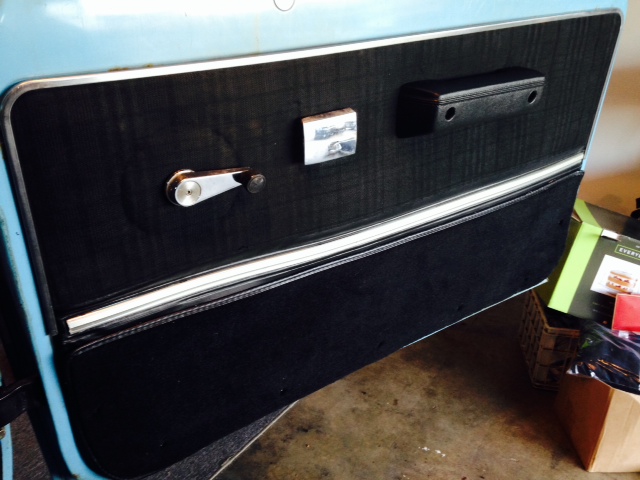

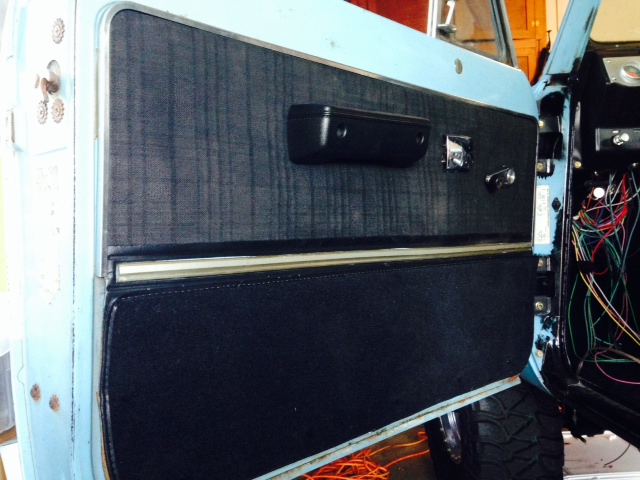

Got the refreshed door panels installed. I like the way they turned out using simple black dye. They will eventually get redone in vinyl.

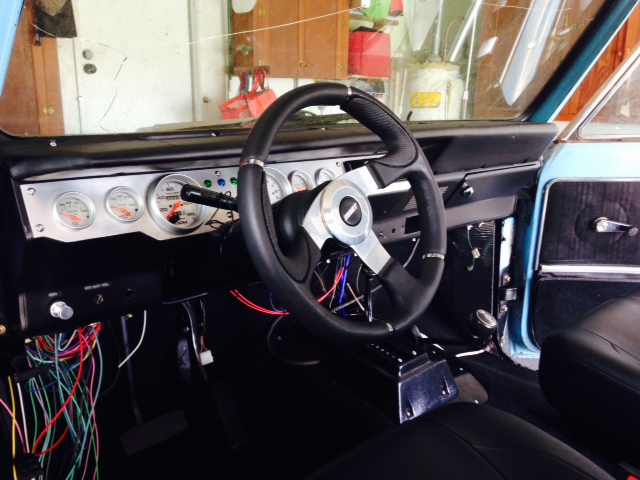

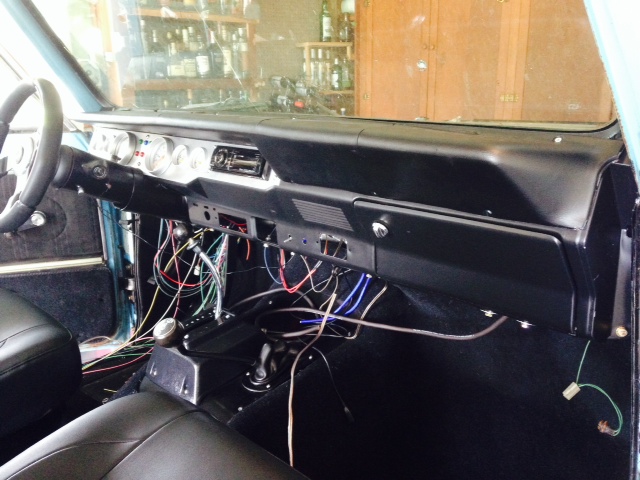

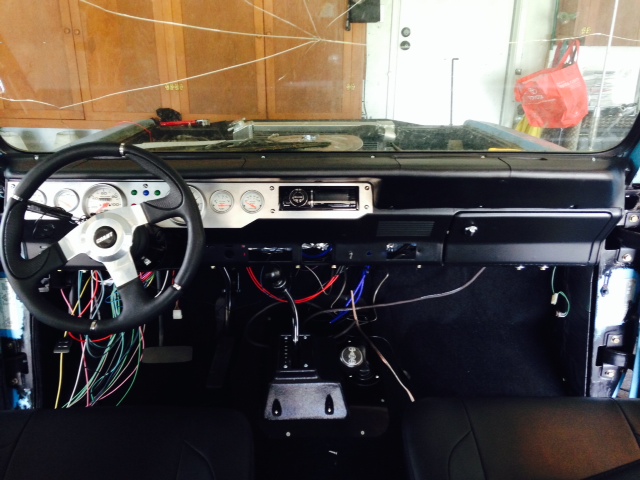

Also got the dash pad installed. It has cracks, like most do, so it will be recovered at some point as well. For now I'm digging the fact that the interior is almost back together.
Also got the dash pad installed. It has cracks, like most do, so it will be recovered at some point as well. For now I'm digging the fact that the interior is almost back together.
Attachments
kind of in middle of helping out a friend with efi upgrade on his 69 800.
Tahoedonner
Member
So transmission leaks like crazy. I've known this for the whole time but never realized how much since fluid has never been added since recently. In my short drive after adding fluid the transmission responded very nicely. I've decided to re-seal shift shaft seals, new nss and seal, new pan with drain plug, new fangled mopar gasket, transgo tf-2 shift kit, new filter, new trans mount, adjust bands, and then properly adjust linkage. I've read through about 5 727 rebuild threads and feel comfortable rebuilding the trans if need be but am pretty sure this will do the trick this time around. When removing the valve body are there any glaring signs that would scream rebuild now? I'm also going to post this in the transmission section for replies as well.
Tahoedonner
Member
All in the transmission work took me about 10 hours. Since I've never been inside a transmission before I took a lot of time double checking everything and spent plenty of time trying to figure things out. If I had to do it again I could cut that time in half. I'm confident that everything was done correctly and didn't find the transgo kit, new seals, new pan, new gasket, new filter, and all that was involved all that difficult to do. I took plenty of pictures along the way.

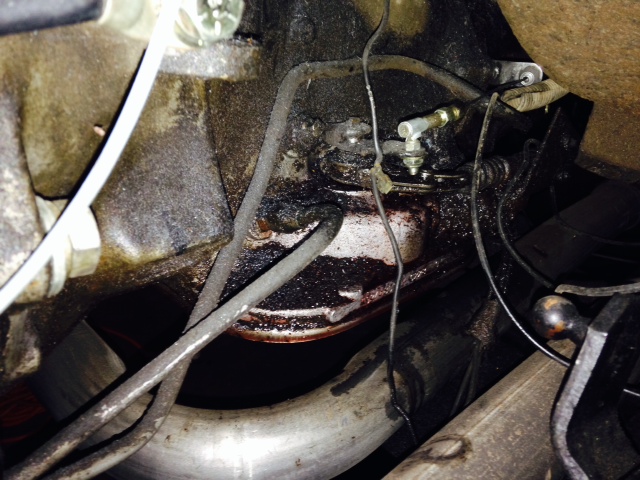

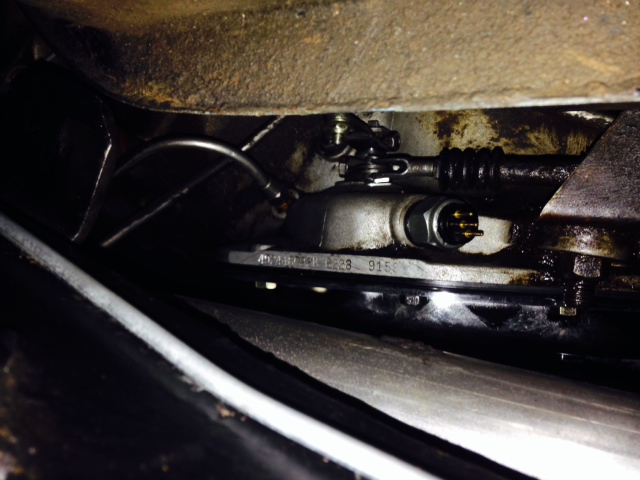

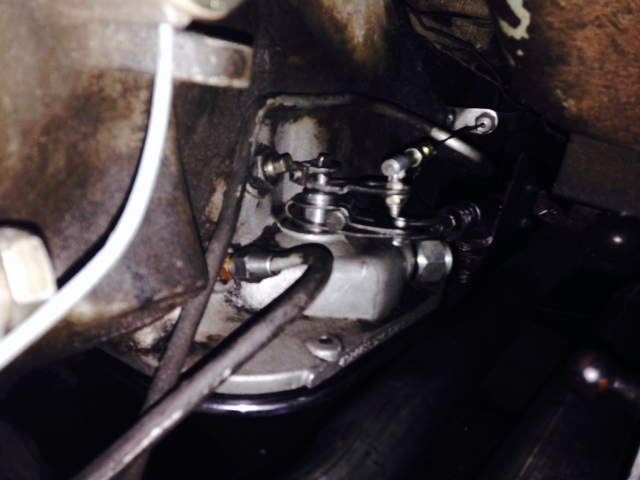

Here's what my linkage and shift shaft area looked like before the process. There was major leakage from both of the seals in this area. I don't know if I would try and replace these seals without removing the valve body. I read numerous times that it's possible but it was tough enough with the valve body removed. I can only imagine what a pain this job would be if it weren't.

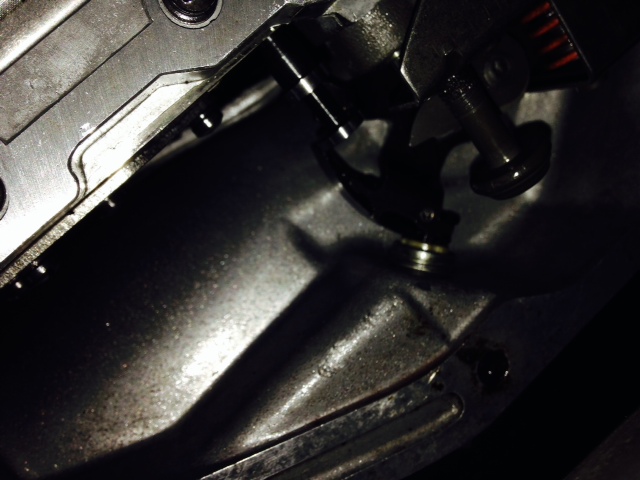

New nss installed

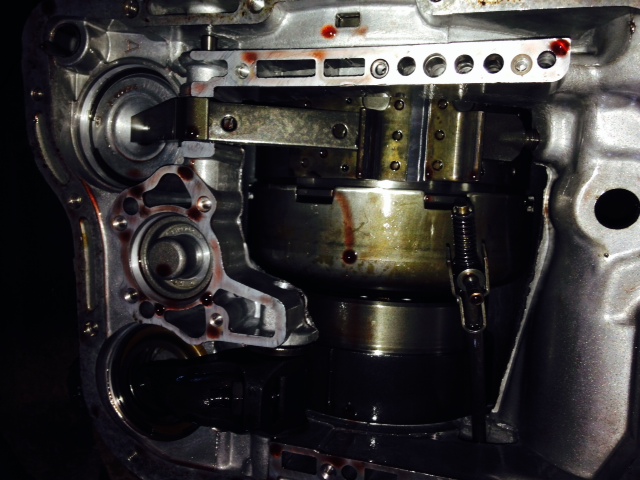

Here's the inside of the trans after the valve body was removed.
Here's what my linkage and shift shaft area looked like before the process. There was major leakage from both of the seals in this area. I don't know if I would try and replace these seals without removing the valve body. I read numerous times that it's possible but it was tough enough with the valve body removed. I can only imagine what a pain this job would be if it weren't.
New nss installed
Here's the inside of the trans after the valve body was removed.
Attachments
Last edited:
Tahoedonner
Member
Installation of the transgo tf-2 kit was pretty straight forward. Since I have a later model 727 it seems that I had less drilling to do then if I had an older model.

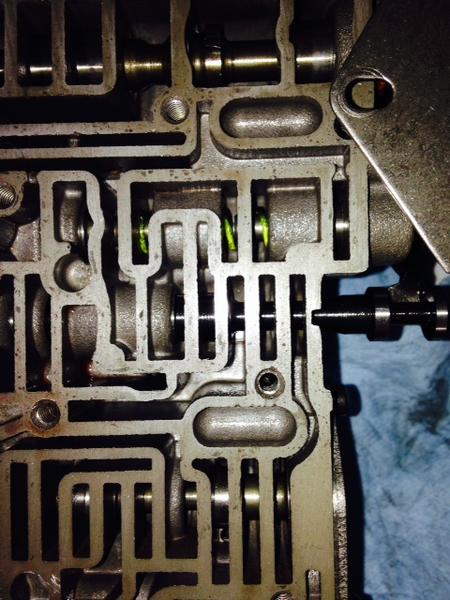

Here's the valve body pre-transgo

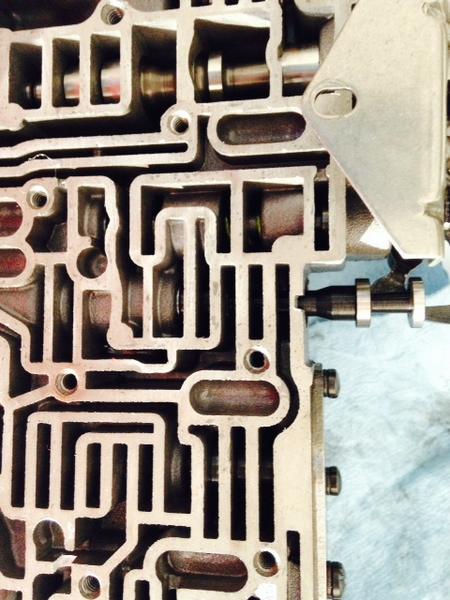

Couple mods that need to be done in the kit.

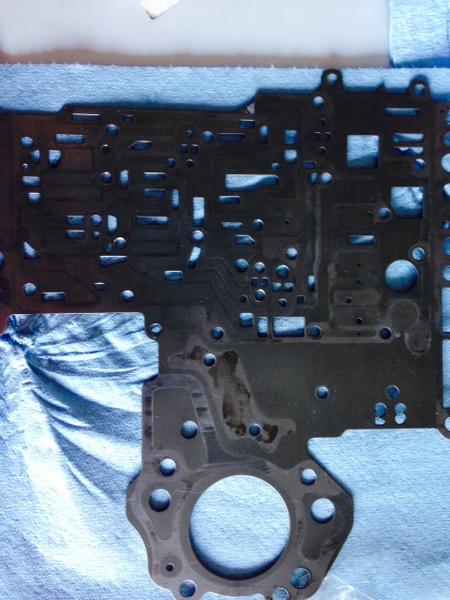

Drilled out separator plate holes. No you can't tell from this pic but here it is anyway.
Slot filed into valve body casing

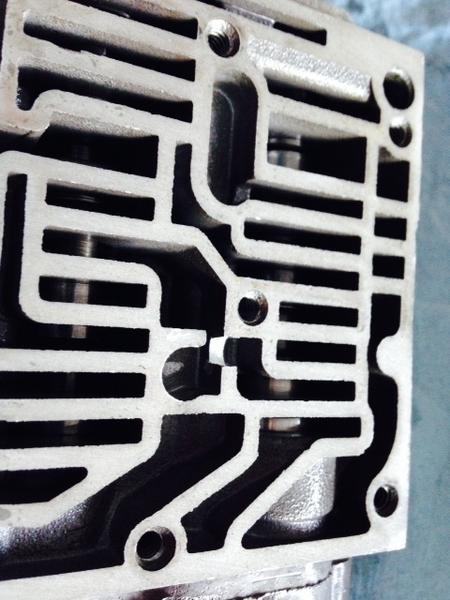

Notch that must be drilled 7/16" into casing.
Valve ground down
Too difficult to explain in a picture

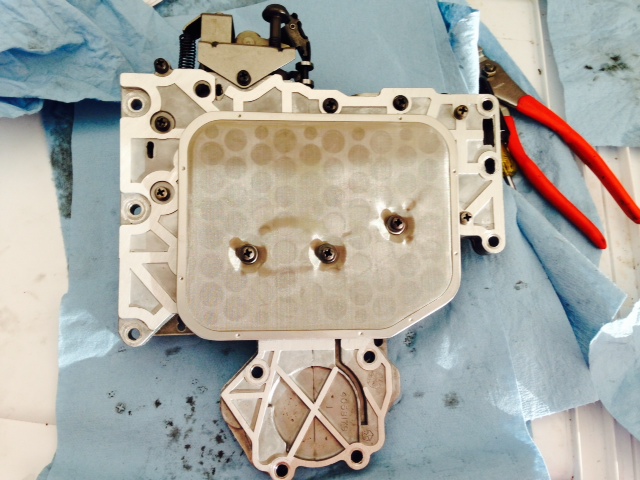

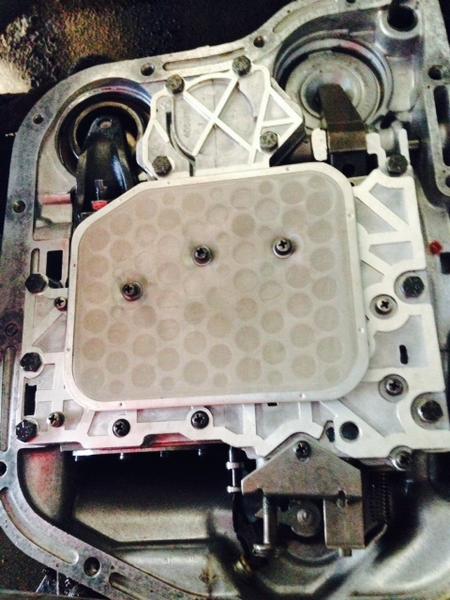

Here's the finished valve body and another pic of it installed back into the transmission.
Here's the valve body pre-transgo
Couple mods that need to be done in the kit.
Drilled out separator plate holes. No you can't tell from this pic but here it is anyway.
Slot filed into valve body casing
Notch that must be drilled 7/16" into casing.
Valve ground down
Too difficult to explain in a picture
Here's the finished valve body and another pic of it installed back into the transmission.
Attachments
Last edited:
Tahoedonner
Member
Last post for the night here.

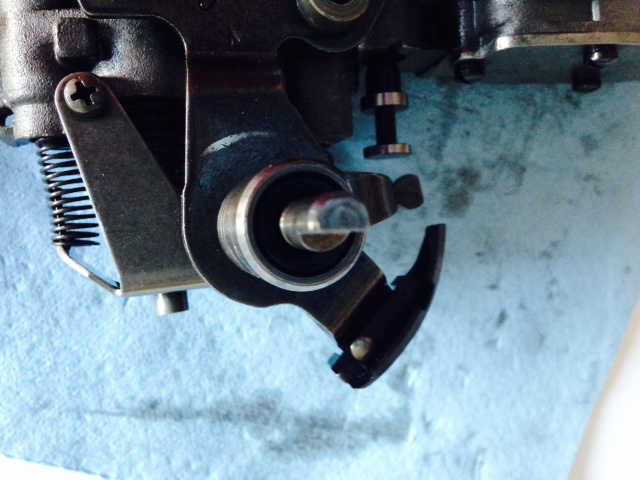

Here's a couple pics of the smaller shift shaft seal that is on the actual arm itself. The other seal is seated into the 727 casing.
The po had put this particular seal (small shift shaft seal) in upside down when it was redone at some point. Maybe why it was leaking so badly. I could see this seal being very easy to replace once the kickdown linkage is removed. Most likely both seals would be leaking though.
Here it is no seal.
Seal pic 1
Pic 2
Here's a pic of the nss from the inside of the case.

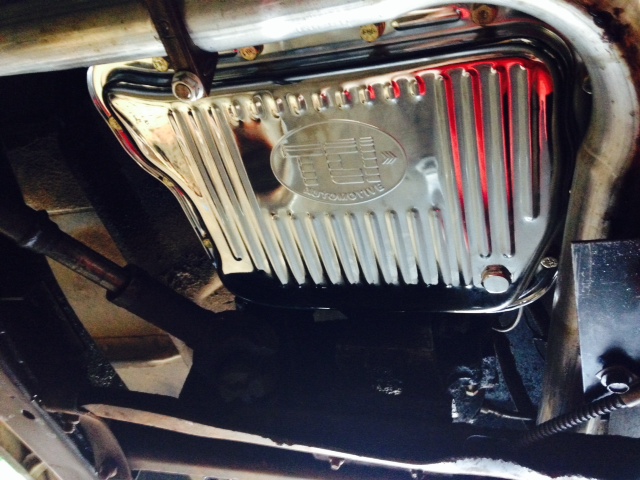

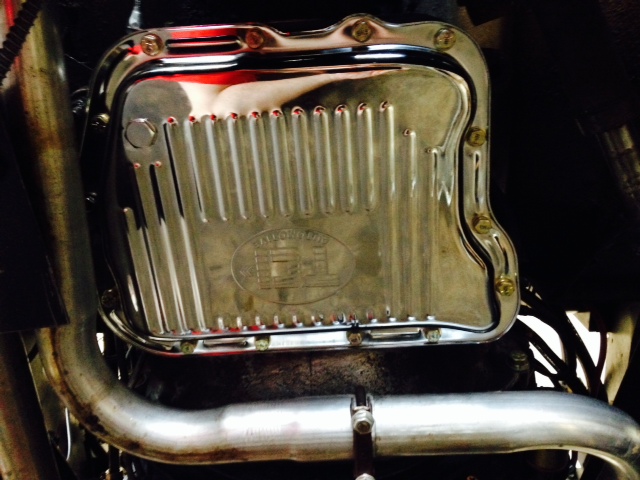

Here's a couple pics of the pan with the new fangled mopar gasket installed. Love the fact this pan has a drain plug. Why anyone would ever make anything full of fluid without a drain plug is beyond me.
Still have one more fitting to replace on the radiator/trans cooler line. It leaked a little when the trans had some fluid so I'm erring on the side of caution and solving the issue before I fill the trans again. Fingers crossed everything was done right. Would love to drive her for a mile or so tomorrow.

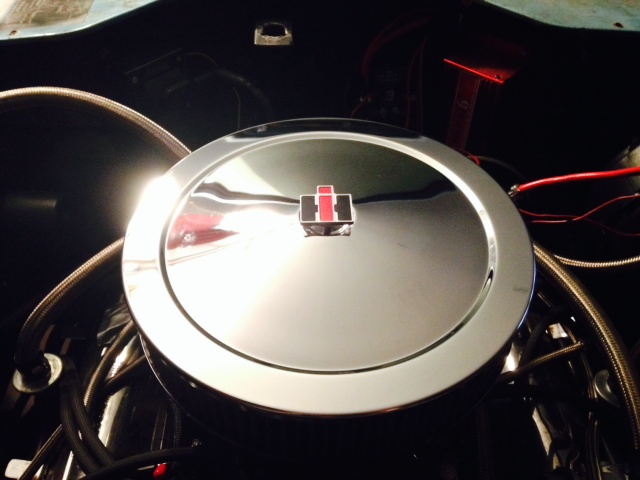

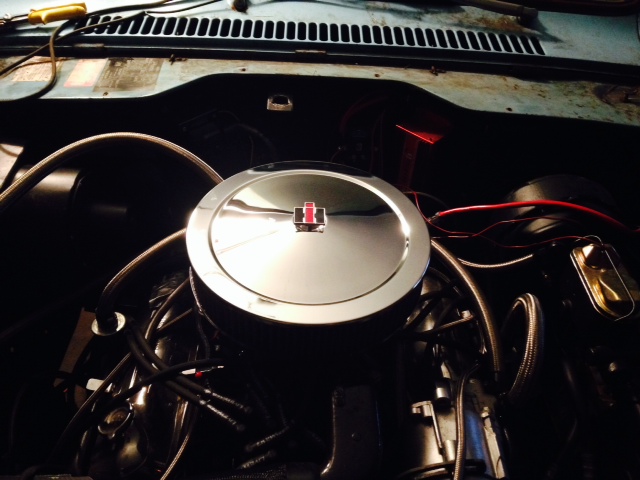

Oh yeah almost forgot that I picked up a nice little piece from IH Parts America. Love this new air cleaner nut. Thing looks awesome.
Here's a couple pics of the smaller shift shaft seal that is on the actual arm itself. The other seal is seated into the 727 casing.
The po had put this particular seal (small shift shaft seal) in upside down when it was redone at some point. Maybe why it was leaking so badly. I could see this seal being very easy to replace once the kickdown linkage is removed. Most likely both seals would be leaking though.
Here it is no seal.
Seal pic 1
Pic 2
Here's a pic of the nss from the inside of the case.
Here's a couple pics of the pan with the new fangled mopar gasket installed. Love the fact this pan has a drain plug. Why anyone would ever make anything full of fluid without a drain plug is beyond me.
Still have one more fitting to replace on the radiator/trans cooler line. It leaked a little when the trans had some fluid so I'm erring on the side of caution and solving the issue before I fill the trans again. Fingers crossed everything was done right. Would love to drive her for a mile or so tomorrow.
Oh yeah almost forgot that I picked up a nice little piece from IH Parts America. Love this new air cleaner nut. Thing looks awesome.
Last edited:
Scoutboy74
Moderator
Good work. This might be a little late in the process, but I'm noticing the grooves worn into your shift shaft which is typical of a high miles unit. Those grooves can present sealing issues even with a new seal in place. Sop is to sand the shaft down with some emory cloth until your fingernail doesn't catch on any ridges. Hopefully yours won't leak from the seal any time soon, but if it does, you'll know why.
Tahoedonner
Member
I should have done that. I was afraid it would take off too much material though. It was all smooth except for those grooves which I suspect will be the cause of an early leak. I've run it the last couple days and shifted through the gears and no leakage yet. We'll see when the linkage is properly adjusted and I can drive it again. Fingers crossed.
Tahoedonner
Member
Got the linkage all set on the transmission. Took quite a bit of time but now r is reverse and d is drive and so on.
Holley 20457s brand new carb with spacer.
Idle is at 1100 in park and drops to 6-700 in gear then tails off. No binding in linkage. Idle set screw a all the way out. Truck is dying after about 5-10 seconds of being in gear with the brakes applied. It reacts fine when I initially put it in gear then stumbles. Reacted the same when mixture screws were 1 1/2 turns out also. Seems like too much fuel to me. I have set timing to 8deg. Mixture screws are 2 turns out. Pretty much everything in the system, ignition and engine, is new.
Tomorrow I plan on:
hooking up vac gauge to get 20+ vac reading
checking for vacuum leaks
adjusting mixture screws
anything else I'm missing?
After truck dies in gear it is difficult to start. Starts great when sitting overnight.
Holley 20457s brand new carb with spacer.
Idle is at 1100 in park and drops to 6-700 in gear then tails off. No binding in linkage. Idle set screw a all the way out. Truck is dying after about 5-10 seconds of being in gear with the brakes applied. It reacts fine when I initially put it in gear then stumbles. Reacted the same when mixture screws were 1 1/2 turns out also. Seems like too much fuel to me. I have set timing to 8deg. Mixture screws are 2 turns out. Pretty much everything in the system, ignition and engine, is new.
Tomorrow I plan on:
hooking up vac gauge to get 20+ vac reading
checking for vacuum leaks
adjusting mixture screws
anything else I'm missing?
After truck dies in gear it is difficult to start. Starts great when sitting overnight.
