Ignition switch instructions.

[1976Travelall]

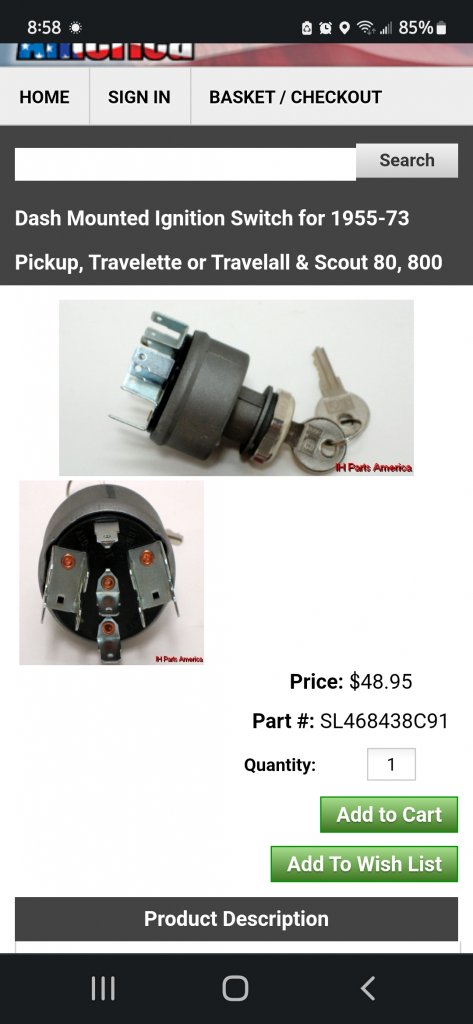

When I purchase this (after the wifey gives me the green light) for my '67 2 wheel drive travelall, does it come with detailed wiring instructions or is it self explanatory? Because I take a look under there at the wiring now and I get a little nauseous... almost don't know where to begin or what the heck I'm looking at.



[Scoutboy74]

Originally, there would have been a molded connector that would only fit the switch one way, but if any PO's have hackified that connector, then each wire would have to be connected one at a time to the appropriate terminal. Get your cell phone camera up under there and snap a reference pic before you take the old one out. A wiring diagram is the best roadmap for sorting out wire by wire repair jobs. The factory service manuals available from this vendor have the diagrams in them.
