Fuse Panel Labels

[jmd2000]

Have a 1975 150 4x4 pickup - fuse panel has no lettering left to tell which fuse is which. Is there a diagram, photo or drawing available that labels each fuse? Thanks!



[Scoutboy74]

Can be found in the factory service manual. You might try looking through the schematic library sticky thread in the electrical tech section.



[1975IH200]

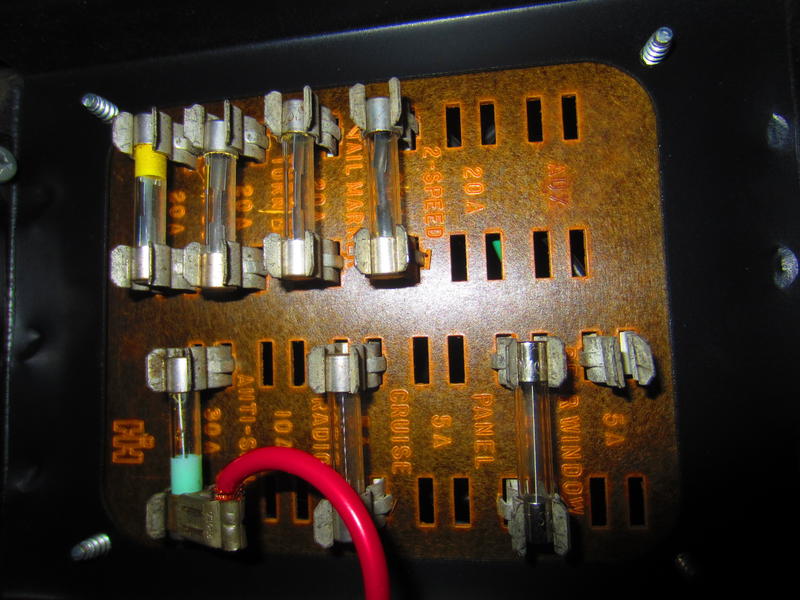

Here is a photo.......

left side: top to bottom -
Aux
2 speed rear end (20a)
tail / marker (20a)
turn / back-up (20a)
horn / dome (20a)
stop / hazard (20a)

right side: top to bottom -
Rear window (5a)
panel lights (5a)
cruise control (5a)
radio (5a)
anti-skid (10a)
heater + a/c (30a)



[jmd2000]

Perfect -just what I needed. Thanks!
