front band question

[scout_77-ihc]

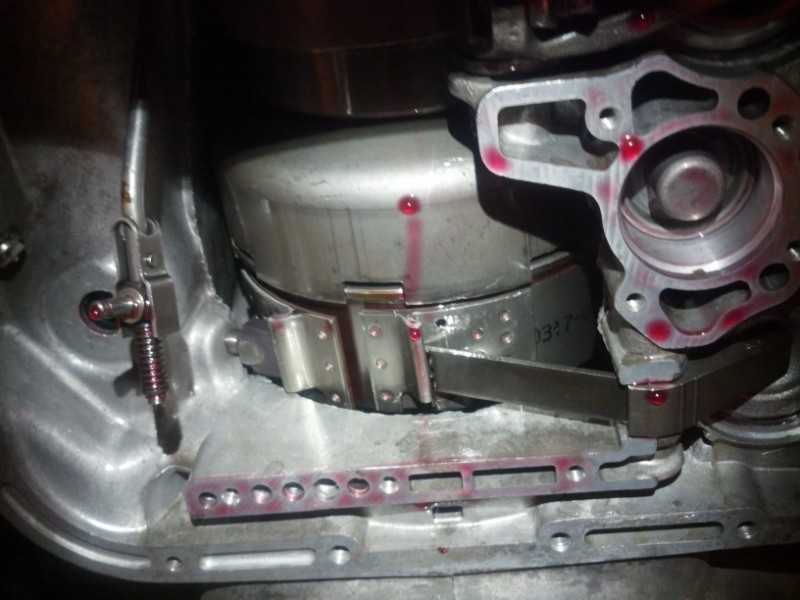

Refer to the attached picture.

Does it matter which direction you install the front band? I noticed that the tabs where the strut and anchor attach do not extend all the way across the band. I just reassembled and installed the whole tranny and then noticed that the orientation of my front band is different than the pics here on the site. See below.

My band:

Reference pic:

Thanks
jason



[scout_77-ihc]

Found the answer in this thread. I installed the band correctly.

http://forums.IHPartsAmerica.com/transmission-tech/5274-Scout-II-727-output-shaft-conversion.html

Jason



[Scoutboy74]

Good job finding the answer and more importantly, getting the band oriented correctly. That would have sucked for you had it been installed backwards.



[carnuck]

It probably would be easier if the photos were oriented the same way. That helps avoid a lot of confusion.
