1966 Scout

rascal7298

New member
1966 Scout Sportop

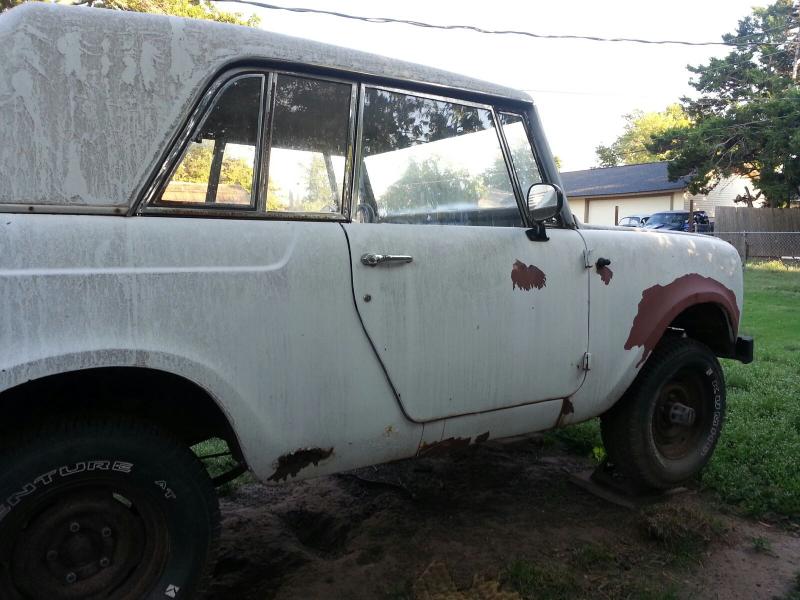

I've found a 1966 Scout 800 for sale (owner actually called it an 67). I've always wanted to get one of these and refurbish one. I'm new to scouts, so I'm doing some research before I put down the $$ to buy this baby.

I got the vin (78090zg217946), but I'm wanting to try and find out for sure what else was supposed to be stock. I understand there is supposed to be a lineticket, but I have no idea where to look.

What additional research do I need to do?

I know it doesn't run as it needs a new fuel pump. I'm supposed to go look at it later this week and I'll check to make sure the engine at least turns over. The owner said it was a 4 cylinder, fwiw.


Attachments

  • 20130926_183735.jpg
    68.7 KB · Views: 474
  • 20130926_183811.jpg
    71.7 KB · Views: 391
Last edited:
Nice find. And welcome to the forum.

Read up on the oiling tech threads. Before you go cranking on that non runner, the oil needs to be feed through. Pull the distributor out and prime the oil pump with an electric hand drill and shaft that fits the pump that is down inside that hole of where the dizzy was.

I'll check out the oil threads. Any idea what adapter I would need for the oil pump?

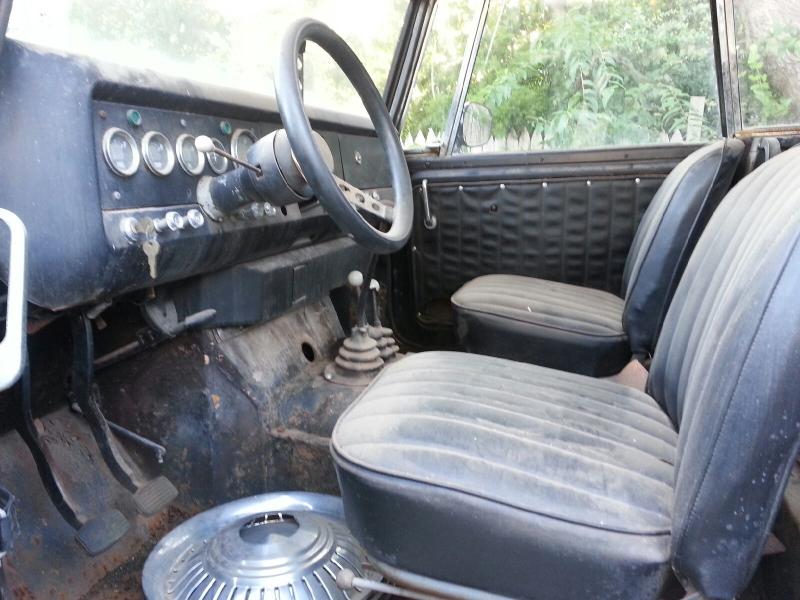

Anybody know of a link that will show what was standard? I'm looking at the hole in the center of the floor board above the shifter thinking somebody altered something significantly.

Last edited:
The adapter I use was made from a 3/8" flat wood bit with the tip ground off. The kit the bit came out of had an extension for the bits and it works perfect.

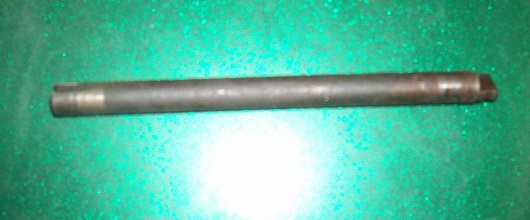

This is what I have used. It's an ole shaft out of a whooped distributor, that I stripped out. I chuck it up in my hand drill and stab it in place of the dizzy.

Btw - for the line set ticket, Jeff posted up a sticky thread regarding it. line set ticket

As far as the hole goes. How about posting up a photo so we know what you're talken bout willis.


Attachments

  • 100_0973.JPG
    79.7 KB · Views: 401
it's the second photo of my original post.

As for "significant alteration" that hole is probably the least significant alteration I have ever seen on a 45 year old Scout.

It can be a hole to access a bolt and can easily be plugged with a rubber hole plug.

Sport tops were only built for a year or two and were available in the hard top (that you have) or a soft top. There are many pieces on the interior that are part of the sport top option.

Take some more photos when you can.

Lol...that's probably true. I'm just apprehensive since this would be my first refurb. I don't own a engine puller/stand or anything like that. And all I've got is a two car garage currently filled with my wife's crap. If nothing else, this project will provide me a justification to clean out the garage :)

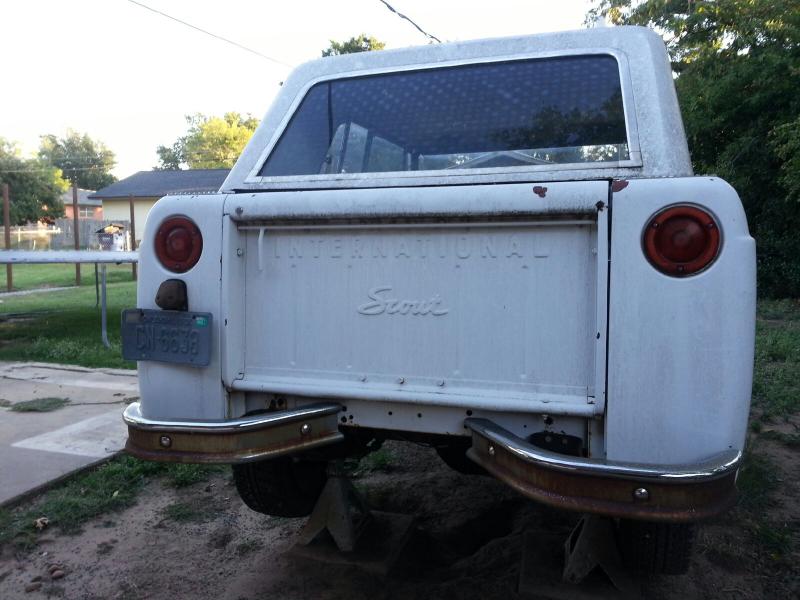

here is a picture of the rear. It is pretty.


Attachments

  • 20130926_183725.jpg
    62.9 KB · Views: 678
Last edited:
I'm thinking 1975ih200 is right about the hole being cut for better access to one of the bell housing bolts. The rear of the engine and transmission bell housing is a very snug fit against the firewall, making some of the bell bolts very difficult to get a wrench onto for turning and also difficult to remove or insert the loose bolts into/out of the bolt hole. At least whoever did it had the class to use a uniform hole cutter. I've seen far uglier "access" holes cut into these rust pigs. We've all had to start somewhere. You've come to a great place for knowledge gathering and parts acquisition. All the major topics concerning these rigs have been discussed within the various sections of this forum. The gang at IHPA, which is the light line vendor responsible for this website, offers outstanding customer service and a great and ever growing selection of parts. In fact, the webstore does not reflect their complete stock, so if you need something but don't see it on the website, that doesn't necessarily mean that they don't have it or can't get it for you. Sometimes you have to pick up the phone and call. They won't bite. Good luck and have fun.

I'll post some pics, but I think I've decided against this particular Scout. Talking to the "owner" left some question marks on its origins and future problems with any title discussions.

A oklahoma Scout club member posted on another forum about this and stated that the owner claimed his father bought in 74. During my conversations the guy said it was 84 (nothing by itself, but added on to other questions and it is something else to consider). I asked him about the interior paneling that goes in the rear and he said they were cracked and unusable. The club member said that they were lost making that the second discrepancy. I pressed further and said that even if they were damaged it would be nice to have for potential repairs (plastic welding or something like that) to which he then said they were destroyed in a fire when his Dad's barn was hit by lightning (say what??). I found that weird, but played it off and continued to look at the car. As I was looking at the car I brought up the issue of the title and that if I was to buy it I would need for the title to get resolved. He asked why, and I brought up the state's dmv site which says oklahoma requires a title for vehicle purchases. He claims he didn't know that, but he would have to get with his Dad on that. I asked if he would give me his Dad's name as the dmv wouldn't even talk to me if I didn't have the current owner's name. He then told me his fathers name, but proceeded to offer three different spelling as he didn't know. He then asked his wife, who was inside the house which they don't own but are moving out of due to black mold before the bank repossesses it (another odd thing), and she identified the correct spelling. I then clarified and asked, "this is your father, right" to which he said yes. How does a son not know how to spell his fathers name???

As I mentioned before, this is my first refurb so I'm being extra cautious. As I was looking at the car there was rust and a lot of it. They had "fixed" the rust the floor pans (front and back) by welding a new piece of metal over the existing floor. The new 'floor" is really rusted so who knows what the original floor looks like. Like I said above, they didn't have any of the interior pieces that made the sportop unique nor the rear tire mount (not a big deal). As I was talking to the owner he revealed that he had put 33" tires on it over a decade ago, but the car wouldn't go faster than 45 mph. He admitted to ramping it up and once accidently ramping it up in 2 wheel low and then shifted into high while it was running. He said he was disgusted with the car after that and never drove it again. Removed the 33" and put on the tires currently shown.

Another thing I found interesting was the fly wheel being completely exposed. Being exposed it was completely rusted as well. I inquired about that and he said it had always been like that.
