Linkage from clutch pedal Scout II

[clhman]

Looking for the linkage for a clutch pedal. I converted from an auto. I have the pedals, but not everything that comes off the end of the shaft and goes behind the accelerator pedal and through the floorboard. Pm me if you have one.

Thanks



[jeff campbell]

All it is , is a rod ? Will get pics an length for you, Jeff



[clhman]

Sure. That would be great. I'm not sure what is even all there. I know there is some type of pivot bracket on the side and a rod, but I have no idea what it looks like under the floor board. I hooked up my master cylinder directly to the pedal and the clutch works, but it is a very stiff pedal. Thanks for the help!



[jeff campbell]

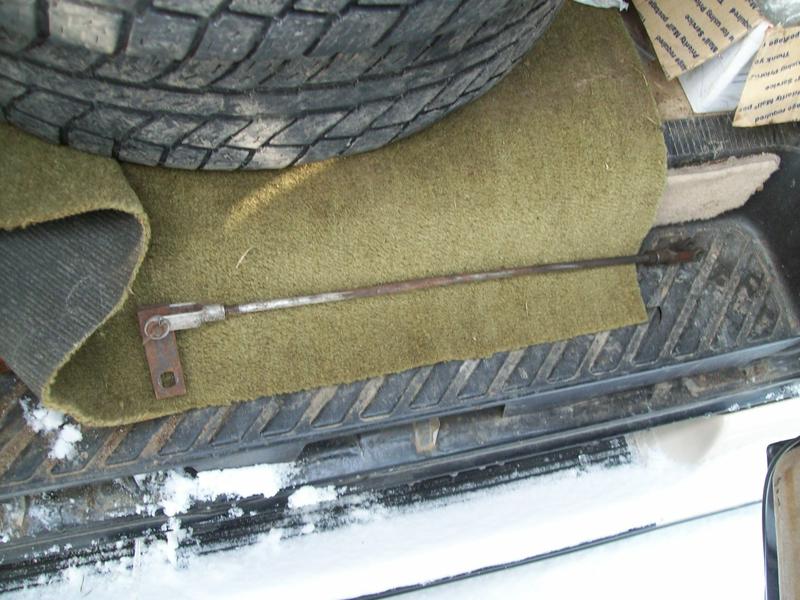

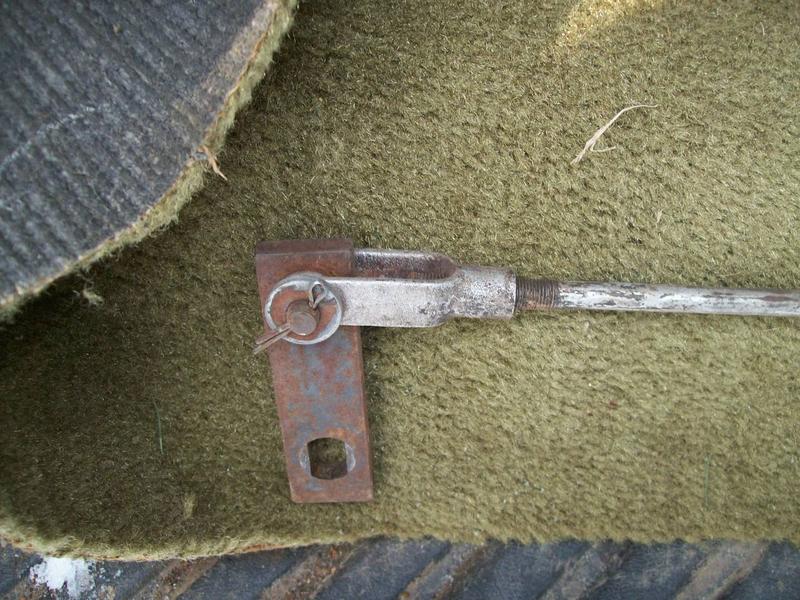

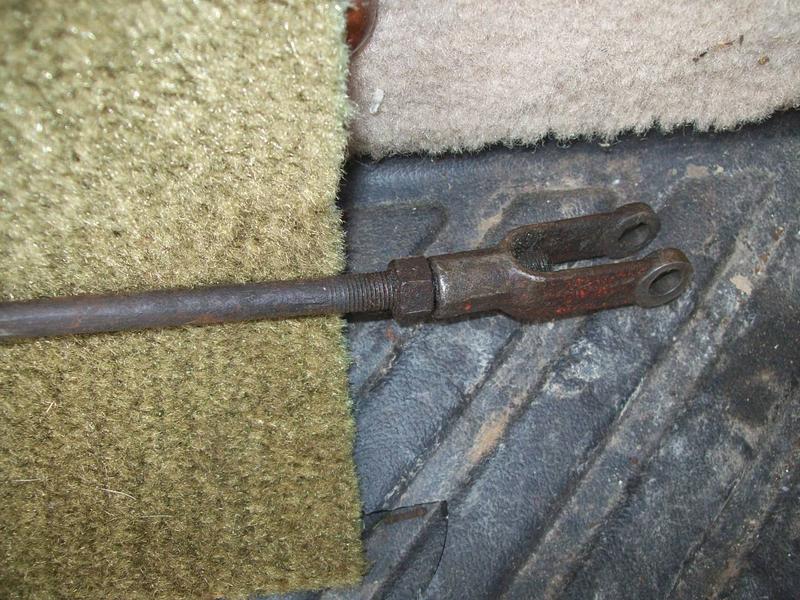

Here ya go, 25" long. Jeff



[ihpartsjeff]

We have all the clutch linkage parts available if you're still looking. Best to call our sales office for pricing, etc. 530-268-0864



[clhman]

Thanks Jeff and Jeff. I'll probably end up making one, since I'm in alaska and it is simple. Thanks for the advice and measurements.



[jeff campbell]

If you do make 1 , May wanna make it out of hardened steel, or harden it your self. Jeff ( cold roll will bend )



[clhman]

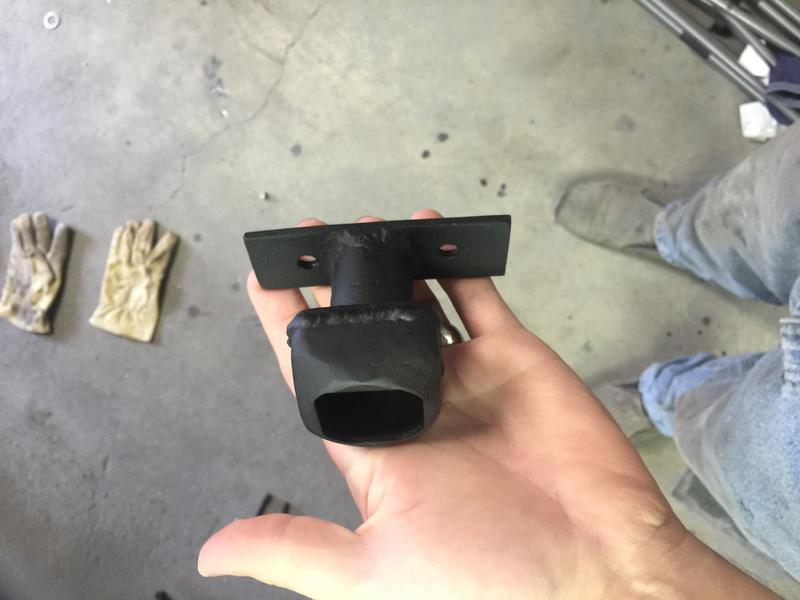

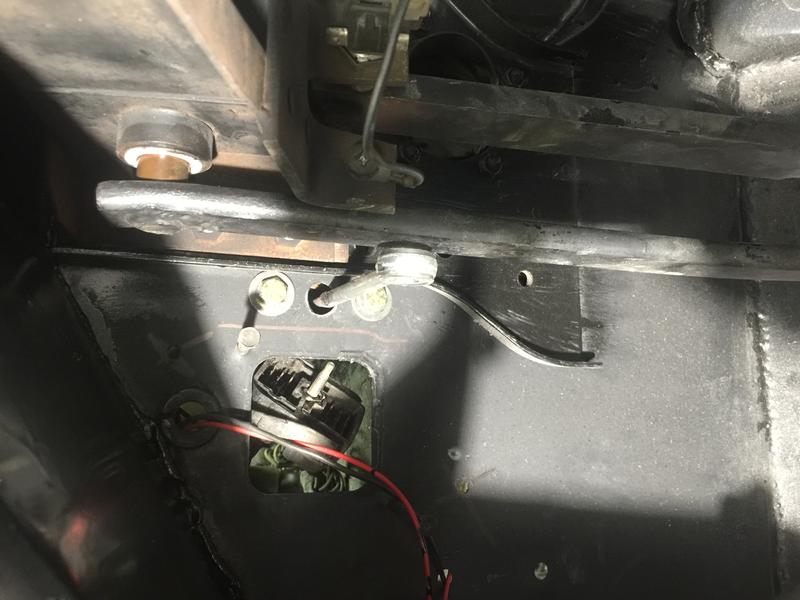

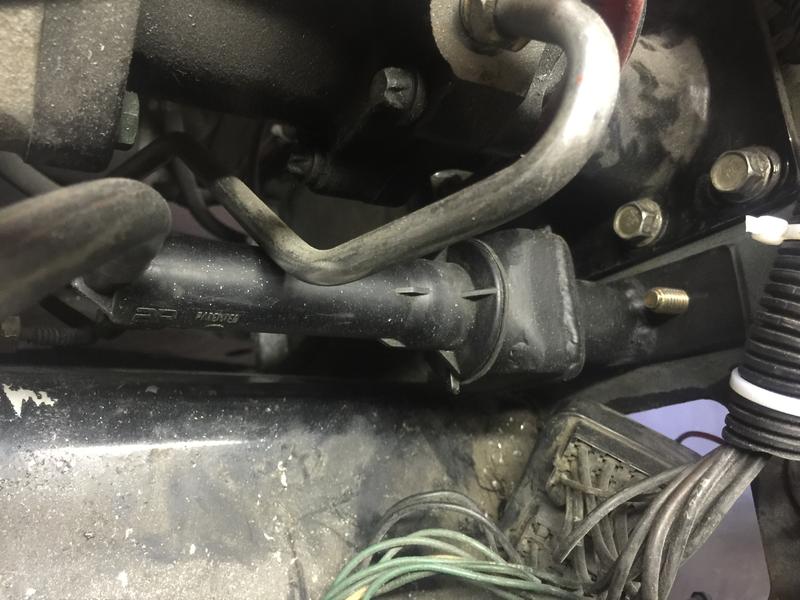

I thought I'd update this as I finally got around to coming up with a way to solve the problem and time to take it apart. I ended up squeezing in the master cylinder between the hyrdoboost and the fuse block. It is a very nice, light, functioning pedal now. I had to build a custom bracket, but it was worth it.
