79 345 Scout 2
prestolite distributor
- red (+) wire connected to small red on mallory hyfire
- brown (-) wire connected to white wire on mallory hyfire
mallory hyfire
- small red connected to prestolite red (+) wire
- white wire connected to prestolite brown (-) wire
- small red battery (+) connected to Ford relay left lug (same as battery
- small black battery (-) grounded to frame
- yellow wire connected to purple tachometer ez wire
- magnetic pickup wires not used
mallory e-coil
- (+) yellow wire connected to orange hyfire wire
- (-) black wire connected to black small hyfire wire
ez wiring harness
Ford relay starter solenoid
- battery cable to left lug
- wire to starter on right lug
- s post front left
- I post front right
sorry if this has been answered but I can't seem to find exactly what I'm looking for.

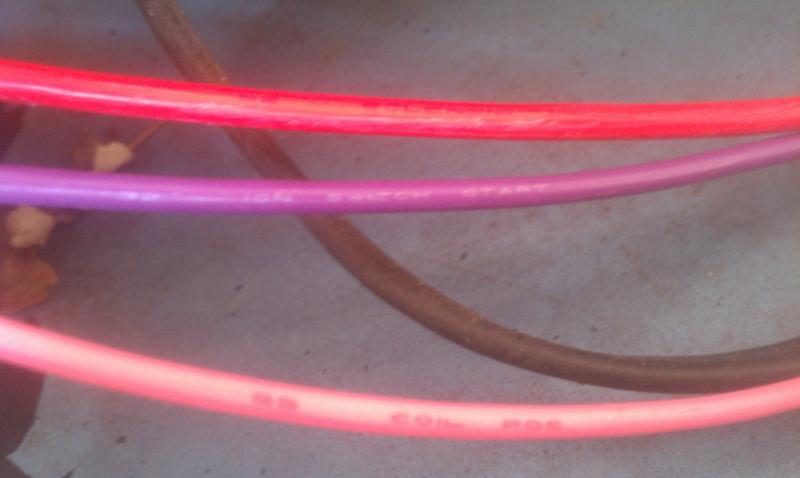

The pink, coil +, wire in the ez wire kit goes?
Are these correct?
The purple, ignition switch, wire should be connected to the s terminal on the Ford relay.
When swapping to a 1 wire 10si alternator the alt power wire in the ez wire kit is the only wire I need connected to the alternator.
The large red, solenoid power, wire in the ez wire kit gets connected to the left large lug on the Ford relay. (same lug as wire coming from battery)

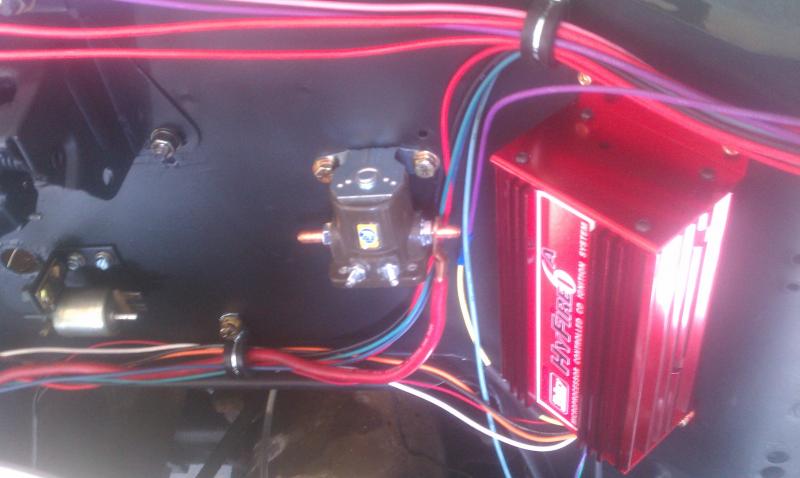

ez wires in question:
Ford relay: battery cable on left, starter cable on right, s terminal front left, I terminal front right
prestolite distributor
- red (+) wire connected to small red on mallory hyfire
- brown (-) wire connected to white wire on mallory hyfire
mallory hyfire
- small red connected to prestolite red (+) wire
- white wire connected to prestolite brown (-) wire
- small red battery (+) connected to Ford relay left lug (same as battery
- small black battery (-) grounded to frame
- yellow wire connected to purple tachometer ez wire
- magnetic pickup wires not used
mallory e-coil
- (+) yellow wire connected to orange hyfire wire
- (-) black wire connected to black small hyfire wire
ez wiring harness
Ford relay starter solenoid
- battery cable to left lug
- wire to starter on right lug
- s post front left
- I post front right
sorry if this has been answered but I can't seem to find exactly what I'm looking for.
The pink, coil +, wire in the ez wire kit goes?
Are these correct?
The purple, ignition switch, wire should be connected to the s terminal on the Ford relay.
When swapping to a 1 wire 10si alternator the alt power wire in the ez wire kit is the only wire I need connected to the alternator.
The large red, solenoid power, wire in the ez wire kit gets connected to the left large lug on the Ford relay. (same lug as wire coming from battery)
ez wires in question:
Ford relay: battery cable on left, starter cable on right, s terminal front left, I terminal front right
