Brake Pedal Play?

[designerlarsb]

Guys,

does anyone have a diagram of the (auto) brake pedal/linkage assembly?

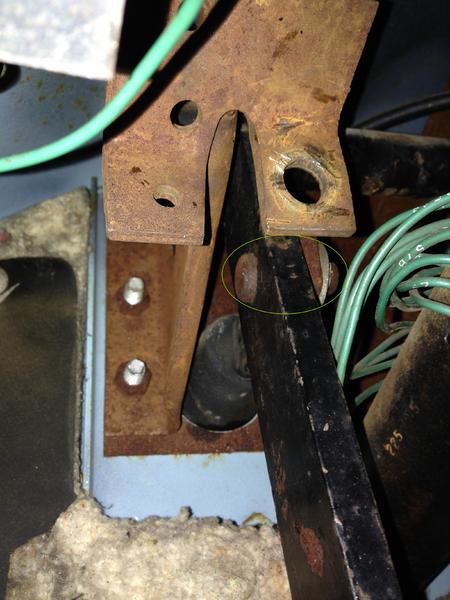

My 76 traveler brake pedal seems fairly smooth at the upper rotation point, but it has an awful lot of play front-to-back in the lower pin point (circled in the photo) that connects the pedal to the mc linkage.

So is this pin supposed to have a snug-fitting bushing+pin and/or a rusty ob-rounded hole, cause that's what it's got right now.



[ihpartsjeff]

There should be a steel bushing that goes between the pin in the pedal and the linkage going into the booster. I don't have any but we can make one buy cutting a slice out of a piece of tubing.
