belt question

N

nick

Member
Hey guys have a question. Im almost done with my long project. One thing I cant remember after over two years is the order of the engine belts. If any one has a pic or a diagram that would be great. Thanks
nick

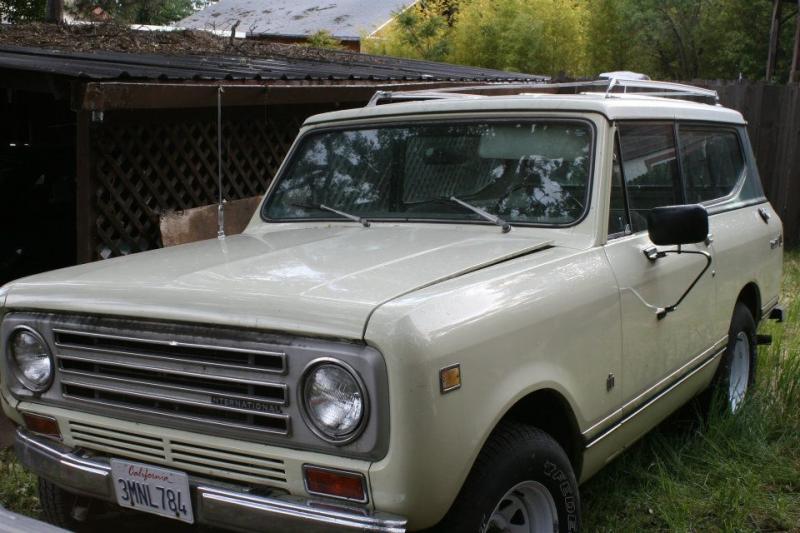

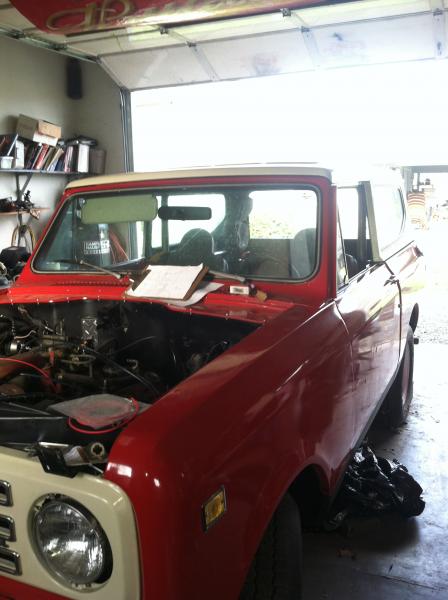

and just a fyi my before and after pic
thanks guys


Attachments

  • IMG_1106.jpg
    37.8 KB · Views: 277
  • IMG_1115.jpg
    68.3 KB · Views: 255
Hey nick, I took pictures of the belt arrangement on the Scout tonight, hopefully I'll be able to post pics of the belt arrangement.
The way mine are arranged are. Innermost belt would be the a.I.r. Pump off of the water pump. Next is the power steering belt driven by the aft crankshaft pulley. Nest is dual alternator belts on crankshaft and water pump pullies. And last is the a/c belt driven of the water pump. Hope this helps. Danny

I'm not able to post the pics I took tonight nick. Pm me your email and I can send them to you or even better, I need to run into lakeport tomorrow and I could come by so you could see them in person. Dan

Thanks Danny that would be great. I work at lake county welders off bevins st in lakeport. I would like to see you Scout too.
Thanks agen
nick
