73 beast

Scooter

Active member
Well, this is the latest addition to my fleet of Scout II's. It's a 73. Origanally it was a later model year when it rolled off the manufacturing line, but I'm all good with it now for being a 73, since I dont have to deal with the ole smog crapola out here in califunkia. It does have a 345 with the auto 727 in it. It is sprung over, along with a Ford 9 inch in the rear and disk brakes and a Dana 44 front with disks. Although, who ever did the work on the front end for the SOA, did a piss poor job in the welding. The booger welds almost doesn't look safe. I won't know how bad it is until I actually pull it out, for a possible gear change to match the rear. It's also sitting on 35" shoes with a 2" body lift.

Here's a couple pics of before I got it:

camo scout.jpg

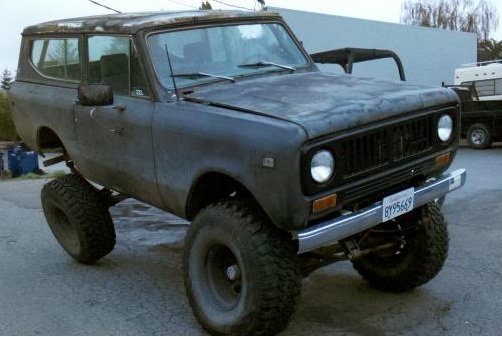

camo scout - 2.jpg

I will add more as I go along.
So far, here's a few of the things I've done to it in the last month since I've had it:

the small puny battery was replaced emediately with my odyssy dry cell from my rolled Scout. That was so heavy that I ended up using my over head electric hoist, just to lift it up onto the fender. I be getten to be too much of an ole fart to lifting the bolder of a battery up above my shoulders.:nono:

changed engine oil and filter.

A major tune up including plugs, wires and coil. Along with a pertronix install.

Just replaced the alternator last night. The old one was on it's last legs and barely working.

Last edited:

Scooter

Active member
Oooops - I just realized that I pulled a major blonde moment and put this build thread in the wrong section.
:icon_redface: :blush2:
if I still drank, I would blame it on being drunk at the time. So, for now, I'm sticking with having a blondie moment


Scooter

Active member
I forgot to mention in my first post, that before I did any of the other maintenance stuff, I had to address the gas tank issue. Issue being that when I topped off for the drive home, on the day of purchase, about a gallon or two poured out the two vent tubes on top of the front part of the tank. They were not plugged off, and one of the vent tubes was so loose that it was about to come out. Plus, the tank was being held in place by only one strap. So I swapped tanks from my barrel rolled 74 Scout that was in good condition. And I had a spare set of stock straps here on the shelf for mounting the tank. Plus, the sending unit in the old tank did not have the sock filter attached to the fuel pick up tube inside the tank. Here's the shot of before the swap:

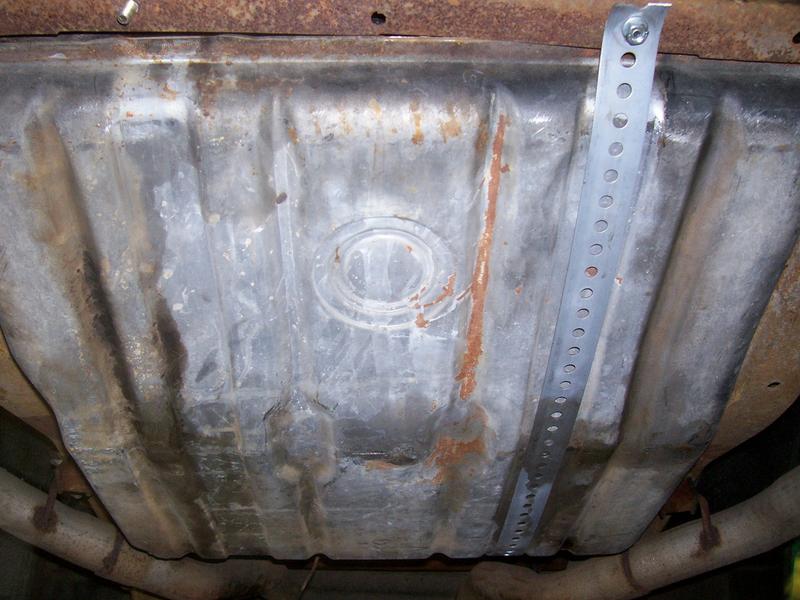

Gas tank mounted.jpg

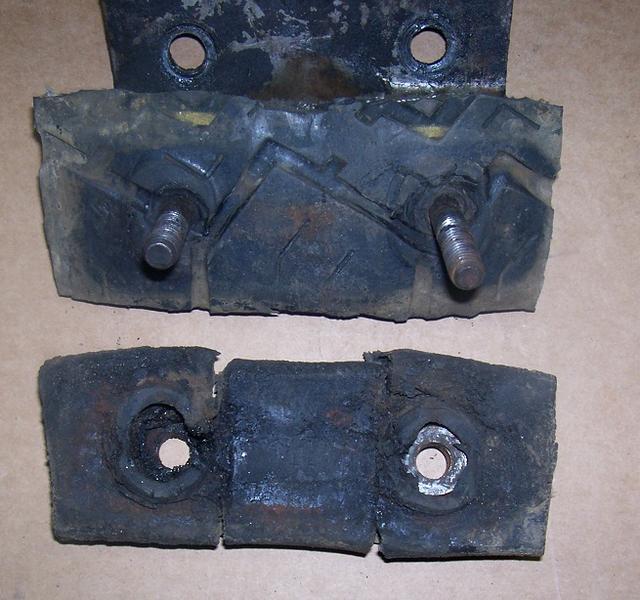

Another thing I did while I was underneath the beast dealing with the tank, was to replace the transmission mount. I installed the CPT trans mount, which I robbed from my barrel rolled 74 Scout. The old mount was so rotton, that I'm surpised it held up at all. What made it even worse, is that half of the old rubber looks like old tire tread that was cut to fit

Old Trans Mount.jpg

Last edited:

Scooter

Active member
Last weekend I worked on turn signal switch in the column. The wiring seemed to be original and getten fairly brittle. And the signal switch was not returning back after completing a turn. So, with parts purchased from ihon, it was all replaced and fixed. Although, while I was taking out all the old guts og signal plastic unit out of the column, these bearings were rolling out of the column onto the floor:


It all works like it's suposed to. And here is after installing the new parts:

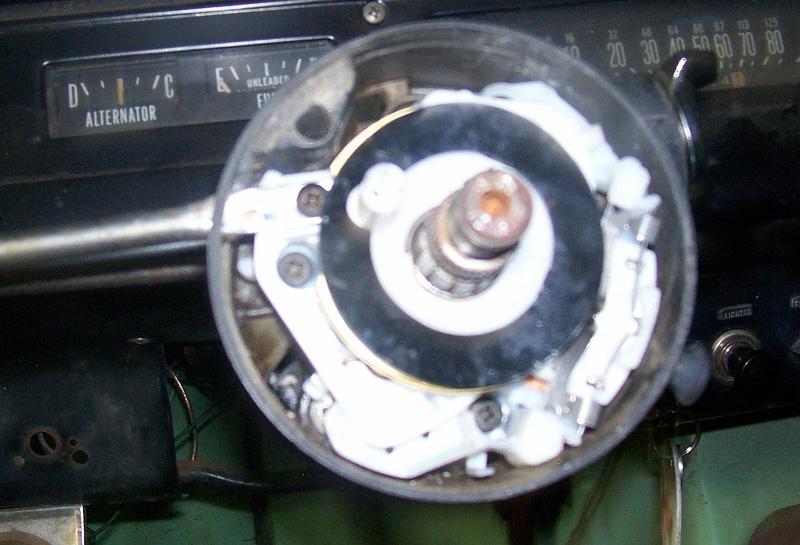

signal switch & cam.jpg

Last edited:

Scooter

Active member
Today, since I had a change of plans, and had some spare time, I swapped steering wheels from my barrel rolled 74 Scout. Granted, both wheels are identical, but the old one was coated with bed liner. And I didn't care for it much. Not only that, I wanted to be able to utilize the grant steering wheel locking option I had readily available.

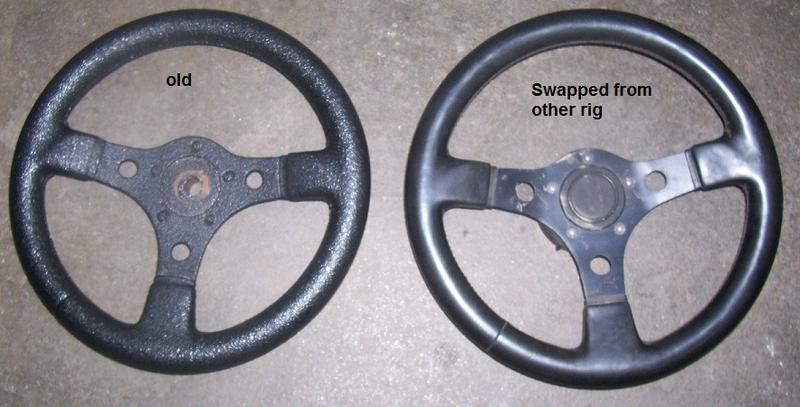

Grant - steering wheel.jpg

And here's the installed locking unit:

Grant - Steering lock.JPG

Steering wheel off I can put the cap on in its place to complete the lock. The way I figure it, is that this is like the best deterent in a theft of this rig. If the steering wheel is not there, how is the thief gonna drive off with my rig.

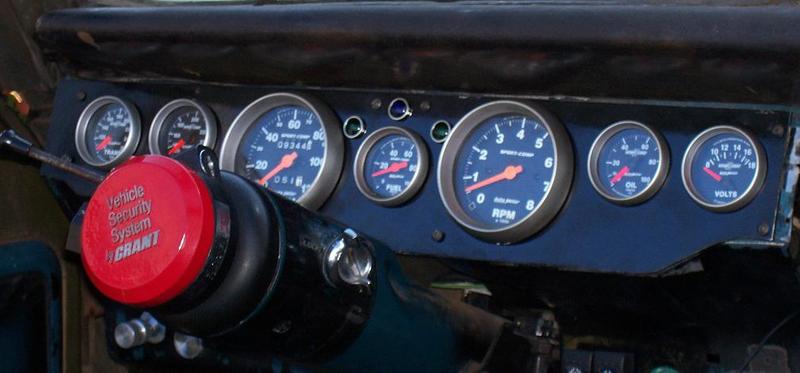

Oh - here's what it looks like when locked cap is on:

New Dash & Gauges1.jpg

Last edited:

Scooter

Active member

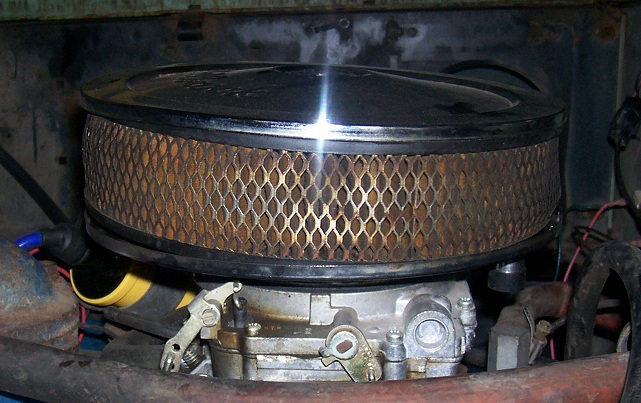

Well - one of the maintenance issues that go along with these old rigs that we love so much, is that I finally got around to dealing with the much neglected air cleaner. It was so bad that even the rats would run from it. I wanted to use the one I had from my 74. But it kinda melted when left over fuel from carb and fuel hoses caught fire. In the last couple weeks, I recently had to order a new element for what I wanted to use, but takes awhile to get. In the mean time, while playing the waiting game, I was able to get a new replacement paper element to get rid of the ole crapola. Finally, after using the temporary new paper element for over a week, my new element came in today. :smile5: now it's time for a drive :icon_lol:

old air filter.JPG

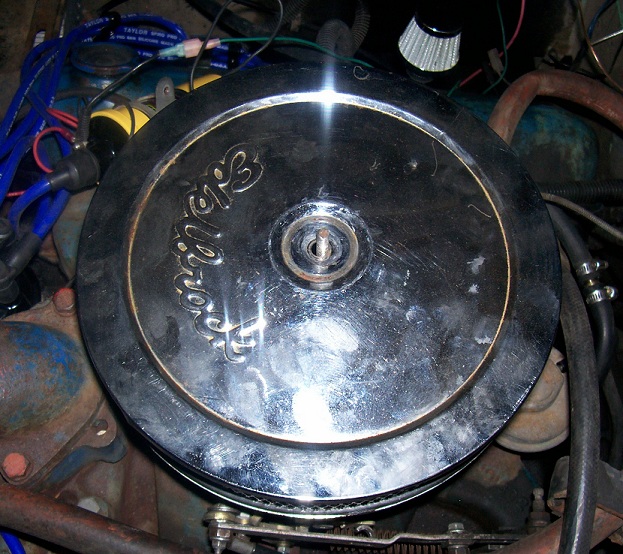

old round filter cover.JPG

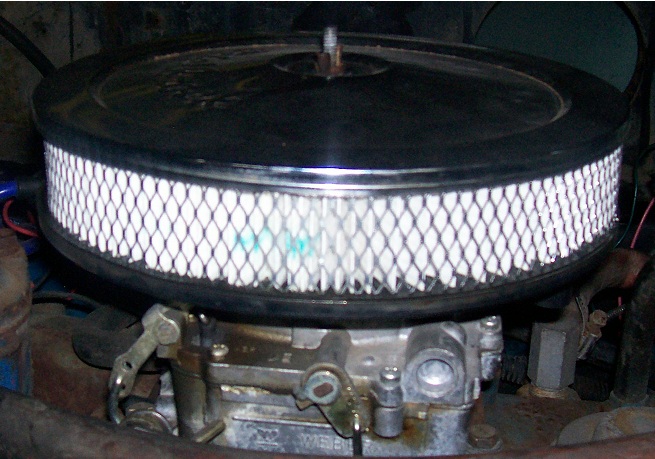

Temporary air filter element.JPG

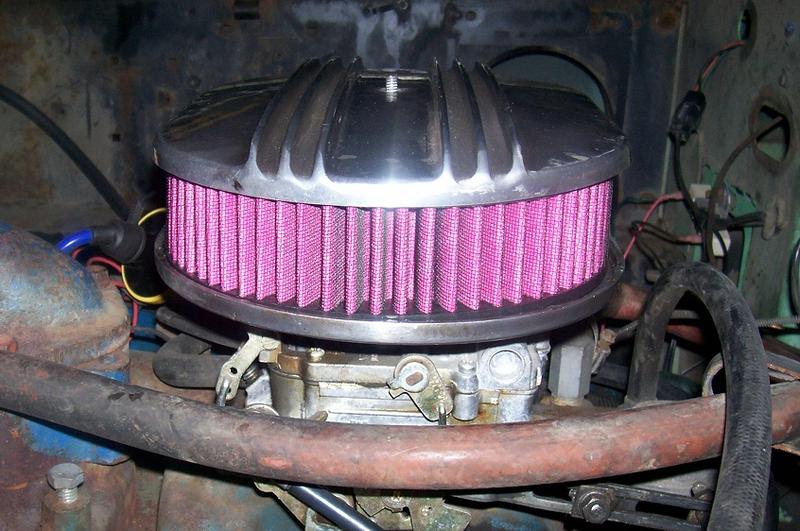

new air filter.jpg

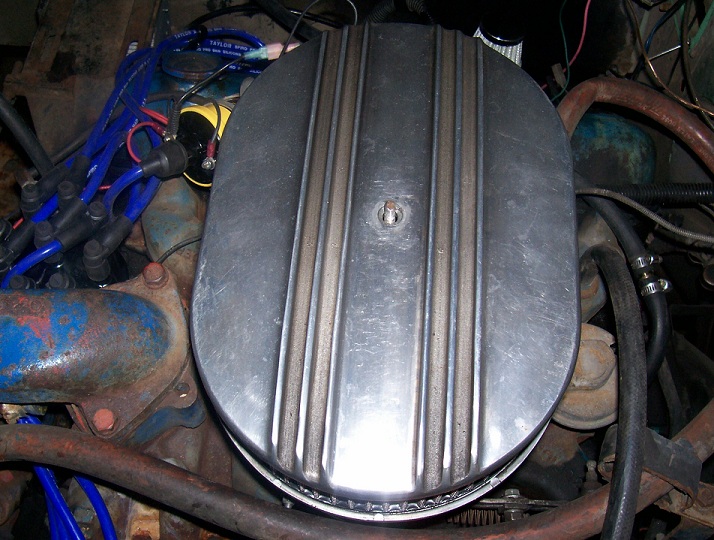

new filter oval cover.JPG

Last edited:

vancetater

Member
Wow looks good I had just changed the oil in it a week befour u got it the tire trans mount gave me a laugh wow. Like I said all I did to this thing was get it running and paint the thing


Scooter

Active member
wow looks good I had just changed the oil in it a week befour u got it the tire trans mount gave me a laugh wow. Like I said all I did to this thing was get it running and paint the thing
Yea - when I saw the ole crap of tire tread for the trans mount, I just shook my head in amazement. That's something that the hoodlem cheap bastards in my area would do. :out:

I had the CPT trans mount, that I purchased from ihon, in my barrel rolled Scout, and just swaped it over

the engine oil did look fresh, but I changed it anyways. Plus, I also recently changed the transmision filter and oil. The oil in the trans smelled a little burnt and the filter was just as dirty. Had a very slight matalic residue, when I pulled the pan. Looked more like band wear, which seemed almost normal


Scooter

Active member

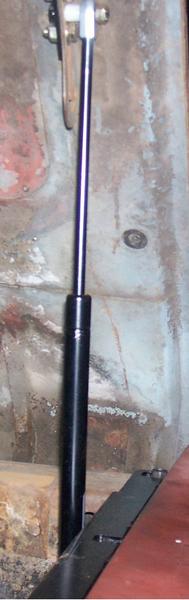

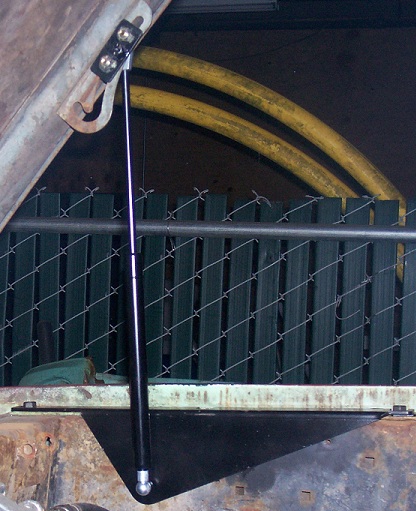

Yesterday, I took the time to install the hood strut kit. Easiest upgrade install known to man. Took all of 5 minutes. Compliments to Jeff once again - thank you


So much easier to lift up the hood. And ya don't even have to go to the passenger side to let the hood down

Last edited:

Scooter

Active member
Got started working on a shackle reversal kit yesterday. I had the kit sitting on the shelf for a couple years, that was ear marked for my 72. But that project is on hold for now, so I decided to install this kit into my current beast.

As I was tearing through it, to my suprise, one of the previous owners had installed urethane bushings in the leaf springs. Also, noticed that the front left bushing is a little chewed up from what ever happened in the past.

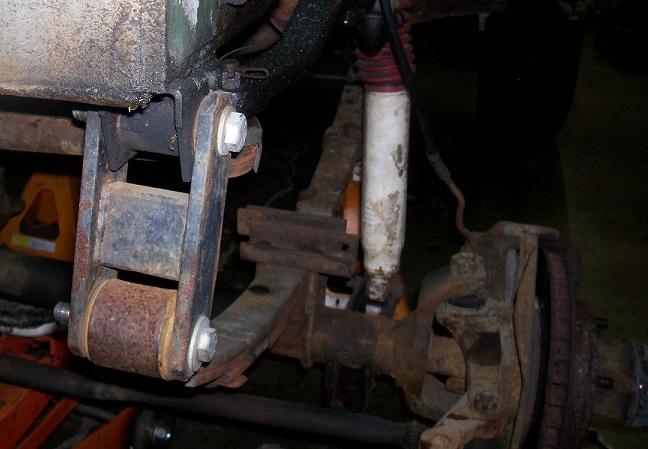

These are the front shackles I took off in order to mount the fangs for the shackle reversal

Shackle - Front Left.JPG

After getting the fangs mounted with some good tack welds, we moved onto plasma cutting off the rear leaf spring hangers and cleaning up left over bugger welds

Andy getting ready for grinding.JPG

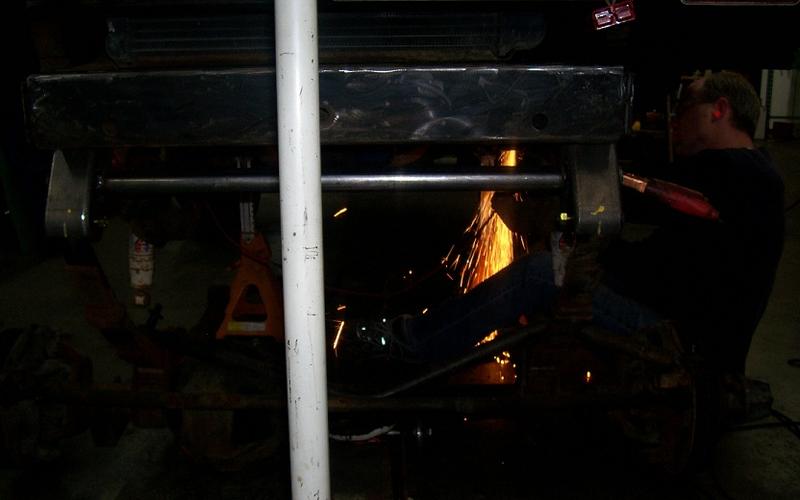

Andy at the grinder.jpg
Still need to get the proper angle for new shackles, then drill through the frame with hole saw for the sleeves that came with the kit. Then 100% welding will be done on fangs & sleeves, once they are in place.

Last edited:

vancetater

Member
I love seeing this thing get the attention it deserves. I am glad you got it hope the po I got it from did not do to much more ghetto fabing


Scooter

Active member
I love seeing this thing get the attention it deserves. I am glad you got it hope the po I got it from did not do to much more ghetto fabing
Lmao - ghetto fabing you say. Check out this u-bolt spring plate on front driver side axle

Leaf spring U-bolt plate.JPG

Plus, who ever did the welding on the leaf spring hanger on rear of front springs had some major bugger welds. Spent the last hour and a half just to grind that crap off, from both frame rails.

I will be posting more of the chit welds when I do the axle swap. Who ever did the conversion for the SOA on the front axle housing had no clue what so ever on how to weld onto cast iron. Plus, what makes matters worse, are those crappy shock mounts on the housing aren't even welded a 100%. Roughly 1" (if that) spot bugger welds

Last edited:

vancetater

Member
I noticed the shock mounts when I got it also theay look like there for a much larger axle tube like a 60 or 14 bolt lol


Scooter

Active member
While I was setting up to set the shackle angle I figured I post this shot of tires being temporarily mounted to get all the weight onto leaf springs.


Hopefully, by this evening, I will have holes drilled through frame and the sleeves welded in. Along with the shackles with the new bushings installed

Last edited:
You've got the *little* grant formula gt steering wheel (13" dia). Grant offers the same style in a 15" wheel (the #1770), which feels more like the rallye option steering wheel used on late-model Scout iis. I had a 13" grant and changed to a 15". The 13-incher felt like it shoulda been on a slammed '64 chebby impala...


today, since I had a change of plans, and had some spare time, I swapped steering wheels from my barrel rolled 74 Scout. Granted, both wheels are identical, but the old one was coated with bed liner. And I didn't care for it much. Not only that, I wanted to be able to utilize the grant steering wheel locking option I had readily available.


Scooter

Active member
you've got the *little* grant formula gt steering wheel (13" dia). Grant offers the same style in a 15" wheel (the #1770), which feels more like the rallye option steering wheel used on late-model Scout iis. I had a 13" grant and changed to a 15". The 13-incher felt like it shoulda been on a slammed '64 chebby impala...
I have had that wheel on the right for like 4 or 5 years. And I'm suprised it held up to a barrel roll, even though it's slightly warped.

When I was deciding on getting this steering wheel, I don't think they had the 15" version yet. Took a little time to get used to the smaller diameter wheel. Plus, with the steering wheel removal & locking unit that I installed, extends the wheel about 2" further away from the dash. Even with a 13" wheel it's a slightly tight squeeze while steering. Seat is a little too close to column for my taste


Scooter

Active member
Man - what a huge deference this shackle reversal kit made. The beast handles so much better. I just finished with a test drive after finally completing the install. Tried to hit every dip and pot hole possible and no more wondering or bouncing all over the place into the next lanes in either direction.

Now onto more pressing issues. While installing the shackle reversal kit, I noticed that the ball joints in the steering knuckles are totaly shot. The upper passenger side seemed to be the worst. But, considering the lack of maintenance on this rig, they all will be replaced. But, I will end up swaping axles by the time that happens. And to make matters worse, who ever did the SOA conversion on the Dana 44 front end had no clue how to weld mild steel to cast iron and left a lot of messed up booger welds. Which is also why I plan on pulling it out and swaping it with known good working front end.






Scooter

Active member
Thank ya. Lol - bout the d-44. I will be posting pics of it when I do the axle swap. The last photo that I posted shows my striped down 74 that has 2 Dana 44's with ARB's and 4.56 gears and 35 spline inner axle shafts:cornut:

I will do axle swaping soon enough. Probably end up doing one axle at a time with a week or two in between


vancetater

Member
Wow looks great I need to do the same thing to my rallye. I took it wheelin this weekend and my pass side front spring hanger broke off the frame and tore a hole in it I just tack welded it on till I do the rs. Thats a bummer on the blown out ball joints I had givin jayson or ruben a brand new set when we all met up here in sc I shoild have givin them to you. I should have inspected that rig a little more befour I sold it seems unsafe. I drove it over the hill many times and let friends barrow it :yikes:
