My binder book does not have a good photo of the fuel line connecting the mechanical fuel pump to the carb fuel inlet located on the passenger (same side as fuel pump). Line looks like it runs below exhaust manifold up by the oil fill. Which sort of makes sense. I am ready to make one, but like my stuff looking as stock as possible. Going to look on ihpartsamer store or if someone has a good photo . I am ready to make one if necessary. Right now, just a crusty old rubber line...

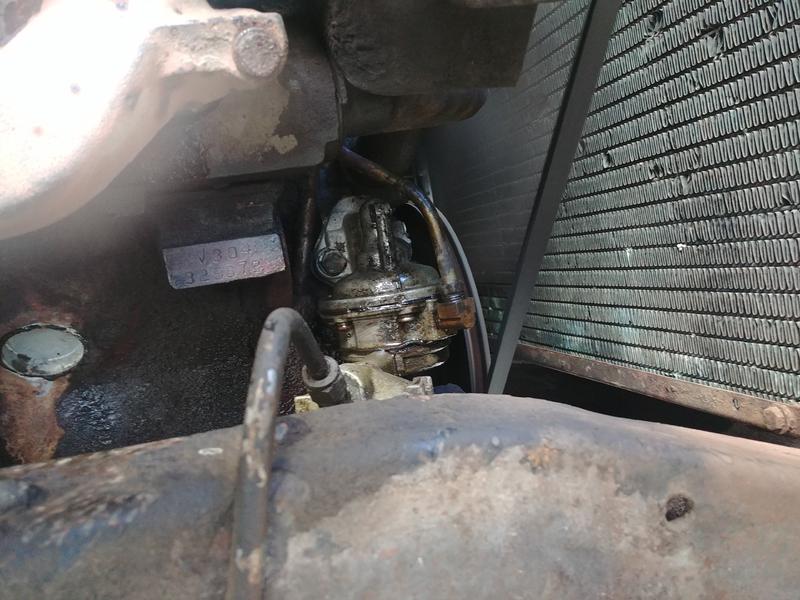

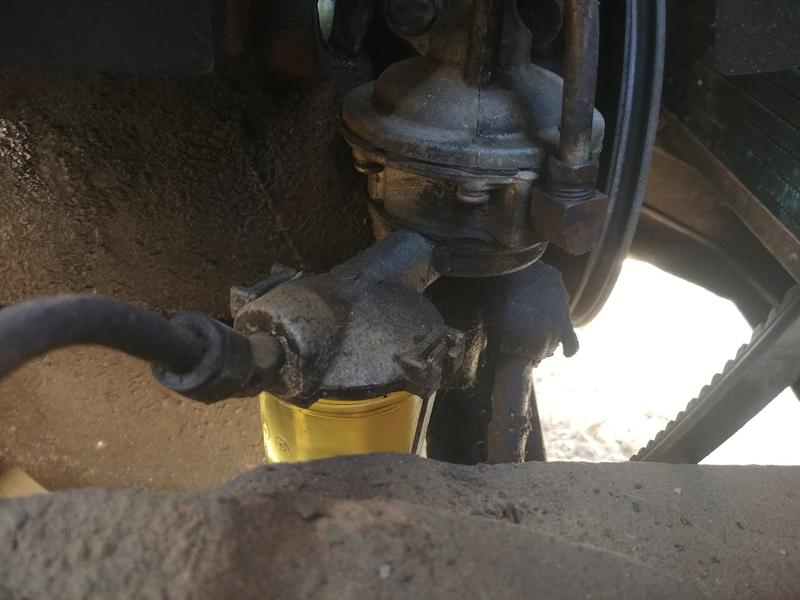

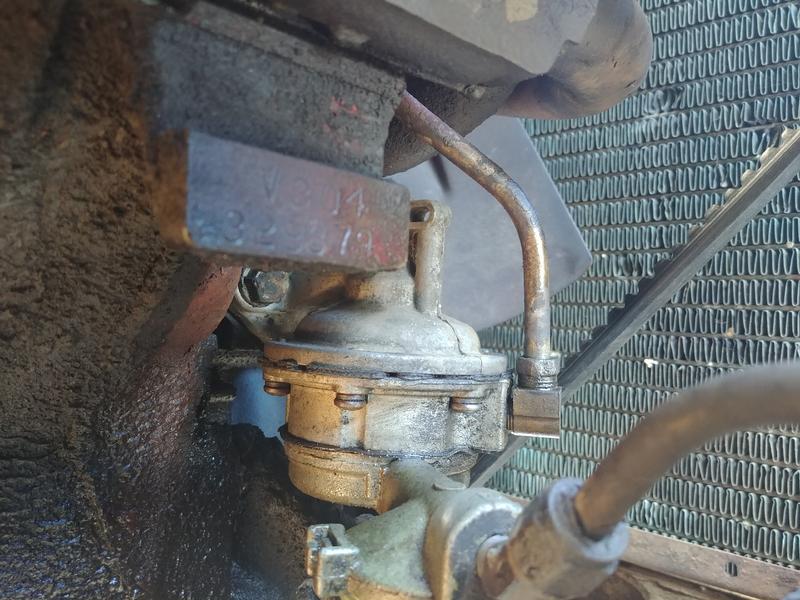

Howdy again, these may not give a complete view but my fuel pump just bit the dust so I have em. Here are a couple angles from down on the pump:

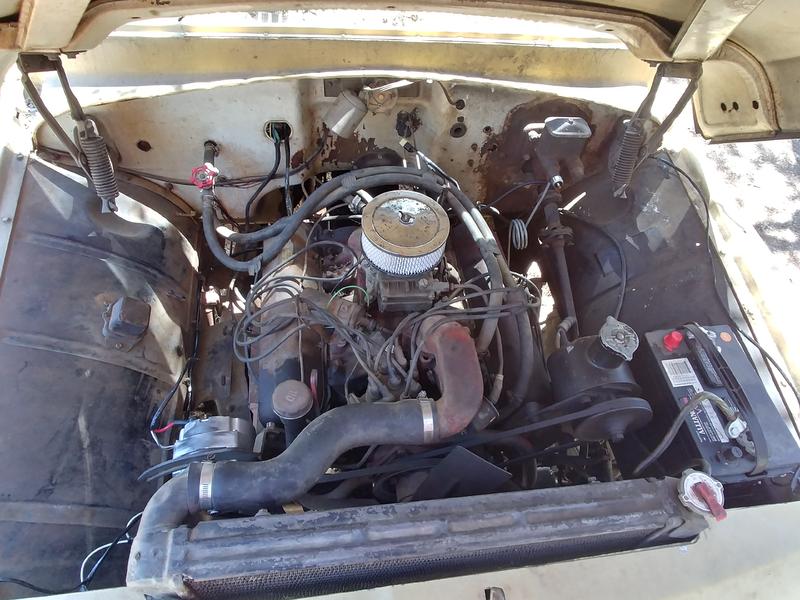

Here you can see the top of it, starting at the fuel filter near the end of the upper rad pipe(should look a bit diferent from yours) and over to the carb. I dont think the filter is original but I could be wrong:
P.s. If youre patient enough I will be removing my old rad for replacement sometime in the next few weeks and if you like I will take more pics/measurements for you. Since I will need to rebuild my pump anyways, I can even remove it.
P.p.s. Build thread? We'd love to see the progress!
