1970 Scout 800A - "Grandpa's Scout"

motorider

Member
This is the family Scout that my grandpa purchased new on October 16, 1970. He gave this Scout to my Dad a few years before I turned 16 for me to drive. Later in life, my Dad give it to me.

I first learned to repair vehicles by the weekly maintenance/repairs that an IH vehicle needs during my high school years. Fairly recently, I decided that a major refurbishment was necessary in order to have a reliable backwoods explorer with my family as well as to preserve for my children and nephews.

I decided to post my project on the IH Parts America forum as this forum has been invaluable for me in finding the necessary methods to restore everything you will see as well as I have purchased most of the parts from IH Parts America. Chad and Jeff have been tremendously helpful in locating new as well as used parts.

The goal of this rebuild is to keep the classic lines of the vehicle I remember while allowing for some improvements mainly for safety, reliability, and function. More posts to follow.

Enjoy as I have enjoyed reading all the other projects on this forum.

Tom young


original picture sometime in the early 70's
Scout Original Picture 001.jpg

Another original picture.
Scout Original Picture 2 002.jpg

Line setting ticket I found in the glove box.
Line Setting Ticket 001.jpg

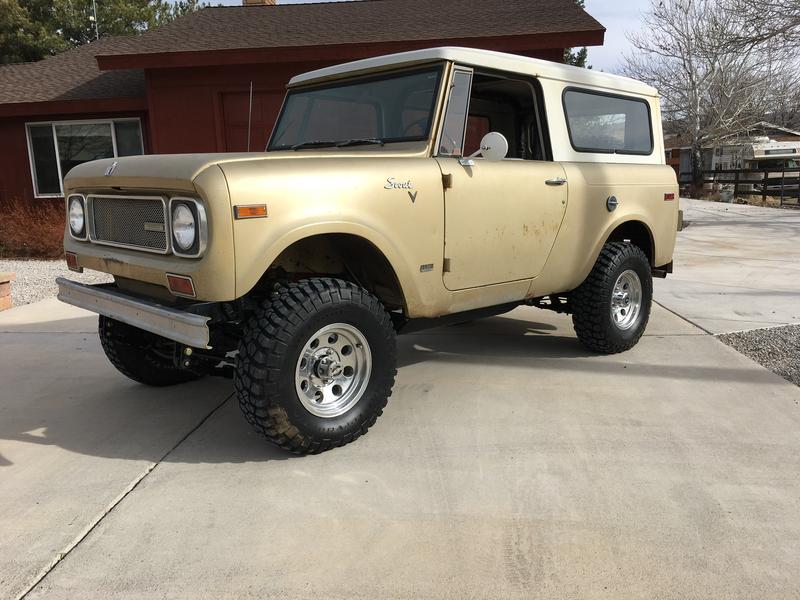

This is how it looked last fall just prior to removing the engine.

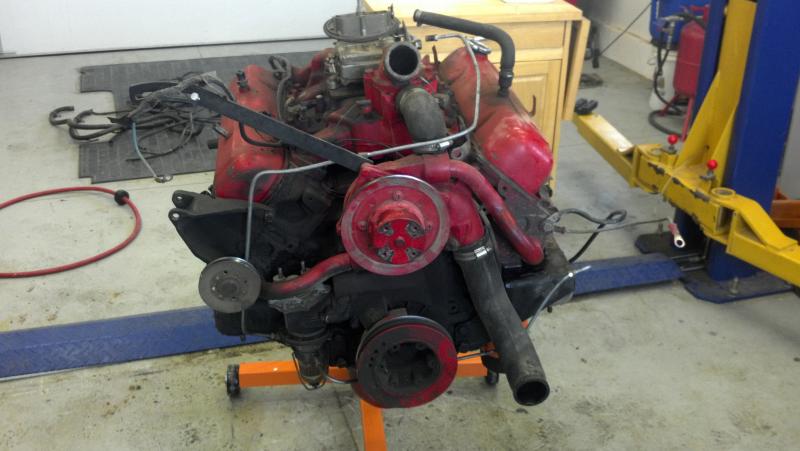

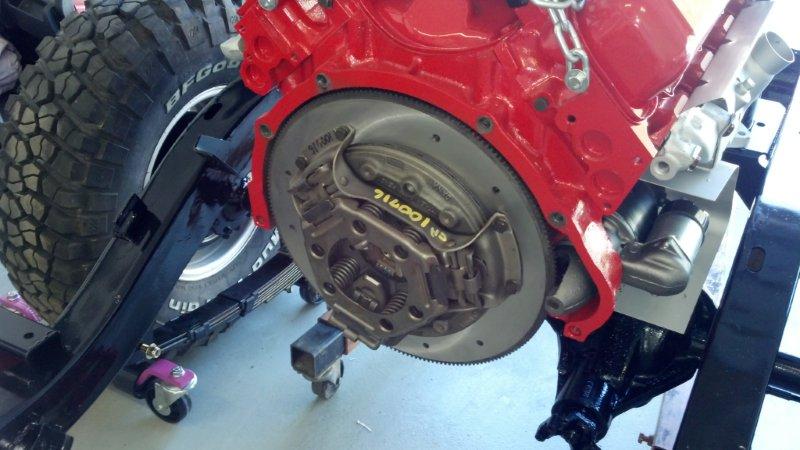

The 304 was tired and smoking due to valve seals as well as very low oil pressure. The block we sent to the machine shop and was cleaned up for rebuilding. All the normal machine work was done including new 0.030 over pistons. I decided to use a stock cam as I really did not have a need for anything more.

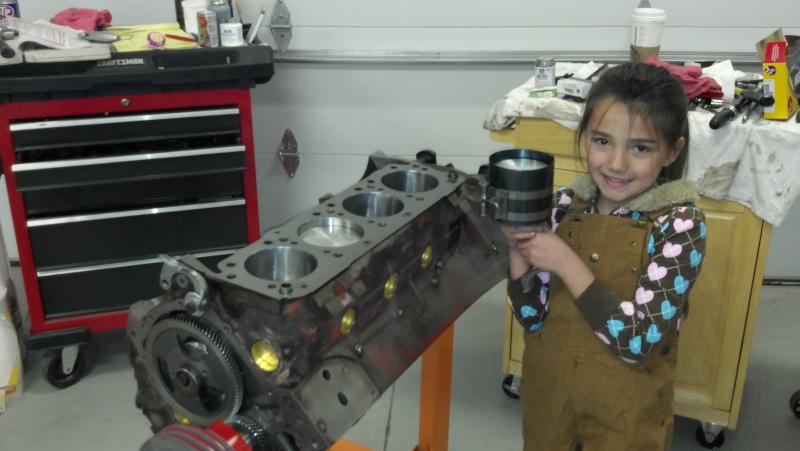

My daughter helping me install the pistons.

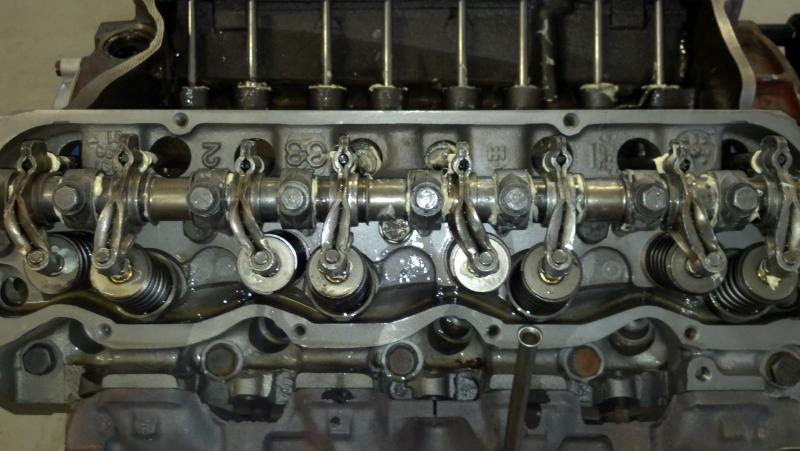

Inspected and cleaned up rocker assembly as per the directions on this forum. You can see that I pressurized the oil system and verified oil to all the rockers. I was pleased that only a little cleaning was required. The oil was changed very regularly over the last 40 years.

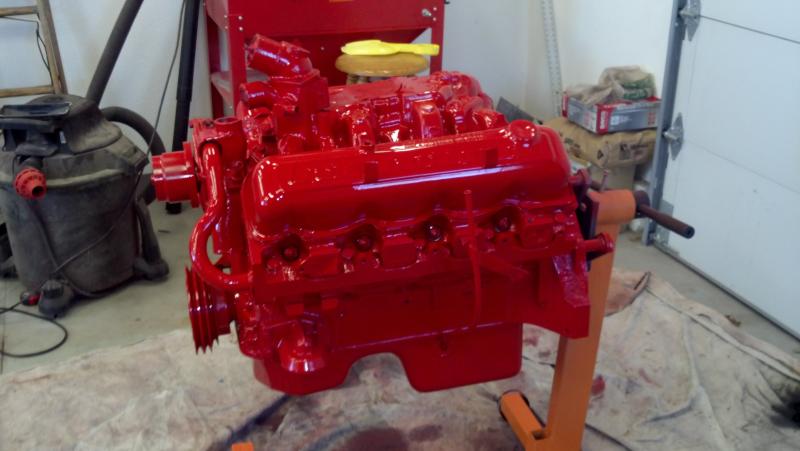

Painted IH red

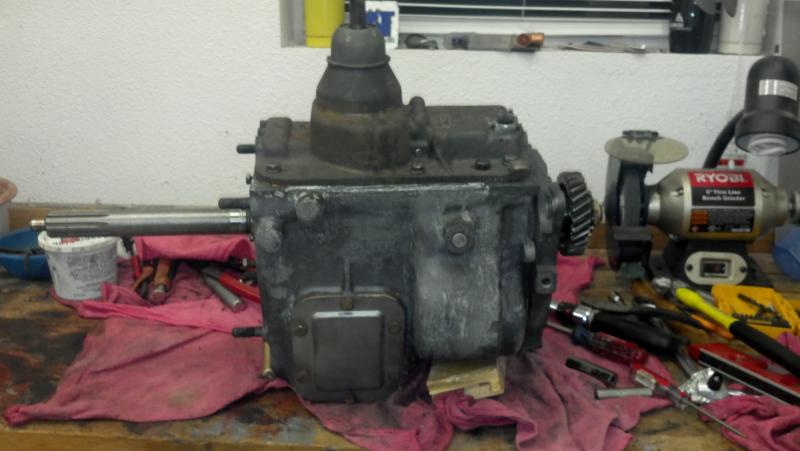

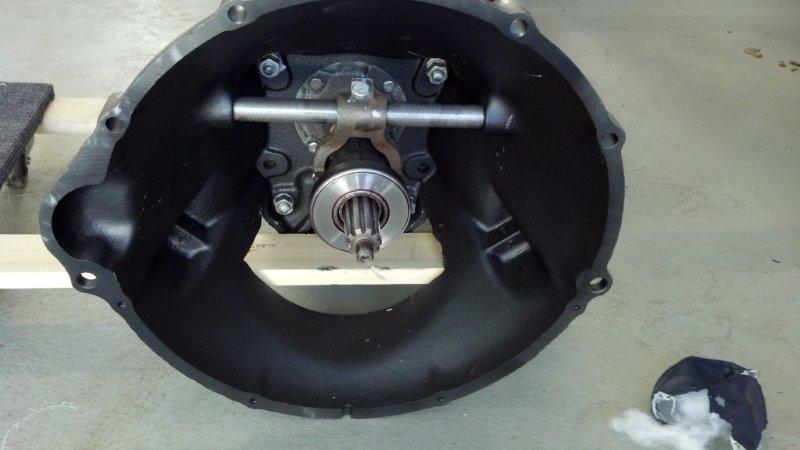

Decided the t18 should have new seals and bearings as is was already out and I have been wanting to rebuild a manual transmission. I rebuild the Dana 20 two years ago and it went a smoothly as to be expected for the first time.

After I had everything on the floor and parts ordered I was a bit concerned about putting is back together.

More to follow.


chico

Member
Debating doing the same on my t-19. Did you have any trouble taking it apart? Did you use any special tools?:confused5:


motorider

Member
debating doing the same on my t-19. Did you have any trouble taking it apart? Did you use any special tools?:confused5:
Just a gear puller and a brass drift. I just followed the IH service manual. It shifts on the bench but it is not installed yet so it is not fully tested. Should know more in a few months.


motorider

Member

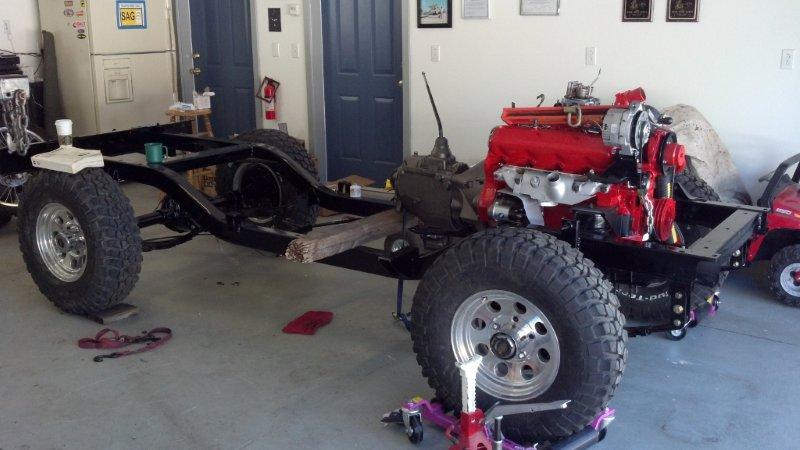

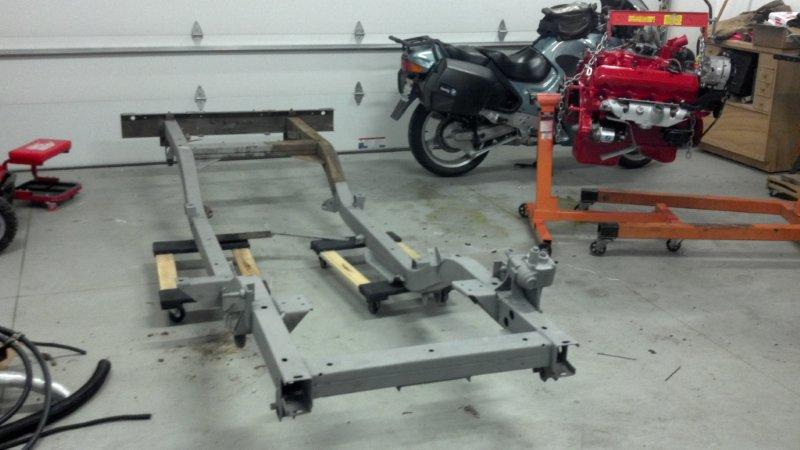

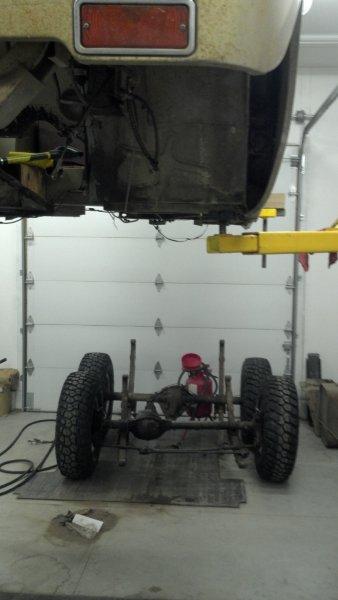

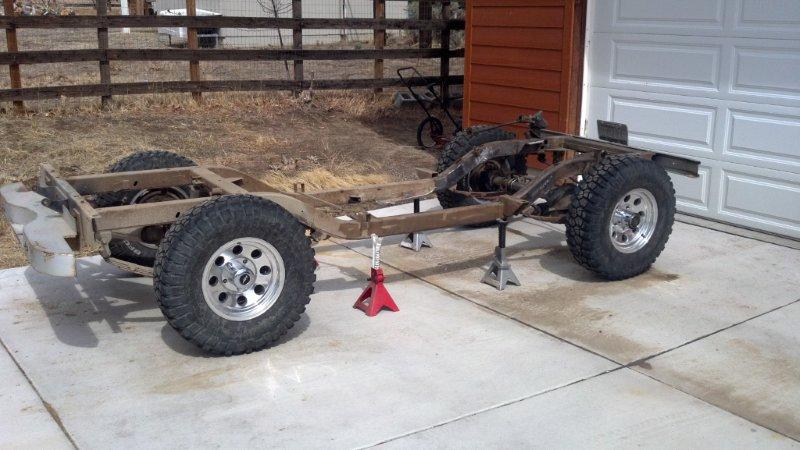

I have been working on this project off and on the last few months as time allows. One thing always lead to another and I ended up taking the body off the frame and restoring a running chassis. I am planning to just drop the body back on the frame and enjoy the Scout a little before tackling the body.

Items completed to date:

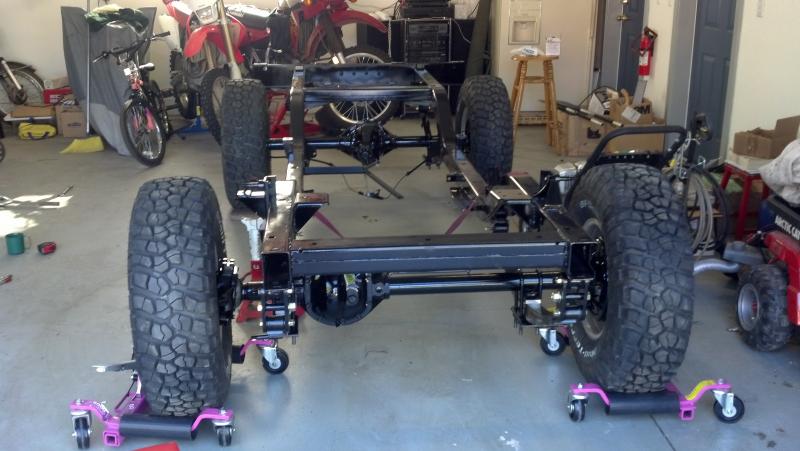

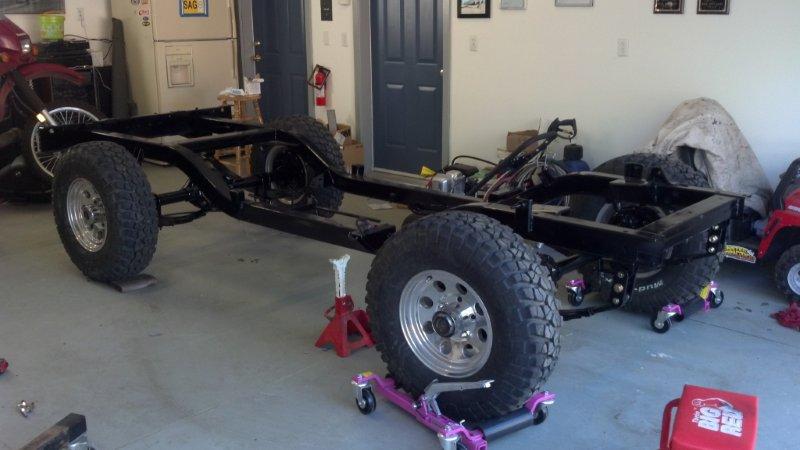

sand blasted and painted the frame, axles, and steering gear with an epoxy primer and single stage urethane paint.
Cleaned and serviced front wheel bearings, hubs, and knuckles.
Cleaned and serviced tie rod ends and drag link.
Cleaned and serviced rear axle and replaced limited slip friction disks.
Cleaned and serviced the brakes.
Cleaned and painted drive shafts and installed new u-joints.
Had the radiator rodded and flushed.

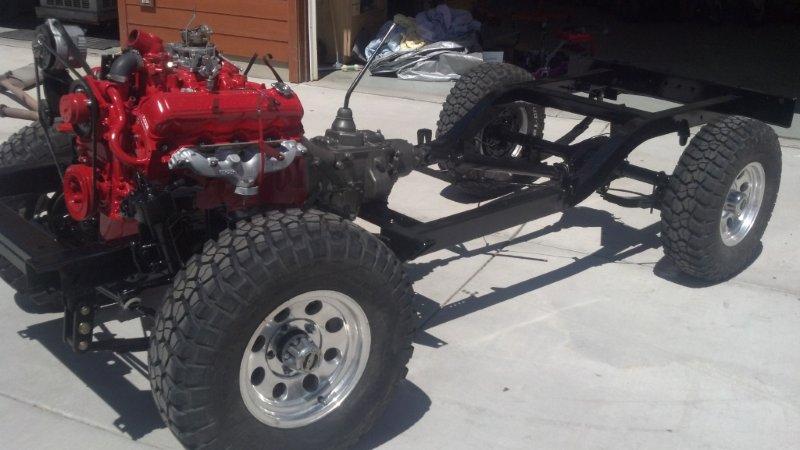

Rebuilt engine.
Rewired the engine compartment, using the remote sensing alternator as discussed in this forum.
Rebuild transmission.
Rebuilt transfer case.
New clutch.

And the big one. I installed the hamilton fuel injection that included spark control.

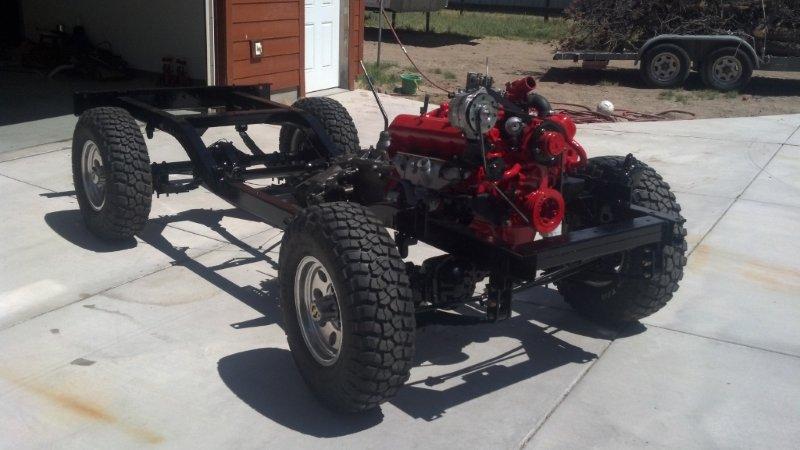

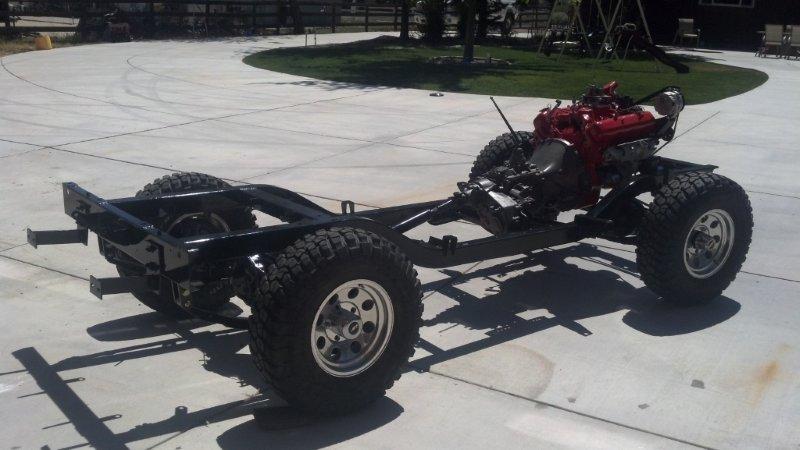

The instructions were thorough after reading and rereading many times. Today was the day for the first start and the engine started after the first few revolutions and ran very well. After break-in I spent the next few hours running through the initial setup procedures and it seems to be running very well. Still need to run though them again to check everything.

Thank you bill for putting together such a great system and IH Parts America for making it available.

I can not wait to see how it drives after I set the body on the frame.
