1968 shift linkage

Navistar

New member
Hi I'm new to this site I have a 1968 travellall 1100 5 speed manual that was 2 Wheel Drive and I'm in the process of converting it over to four wheel drive. I have the front axle installed and the divorced transfer case installed along with the driveshaft to the transmission. I have most of the linkage to shift the transfer case into four wheel drive I was wondering if anybody had a picture of how the linkage bracket bolts up and if it bolts up to the transmission?


Robert Kenney

Super Moderator
I have the setup you are installing in my 68 T-ette 4WD. I'll sneak out and see if I can get some useful photos for you before it starts raining.

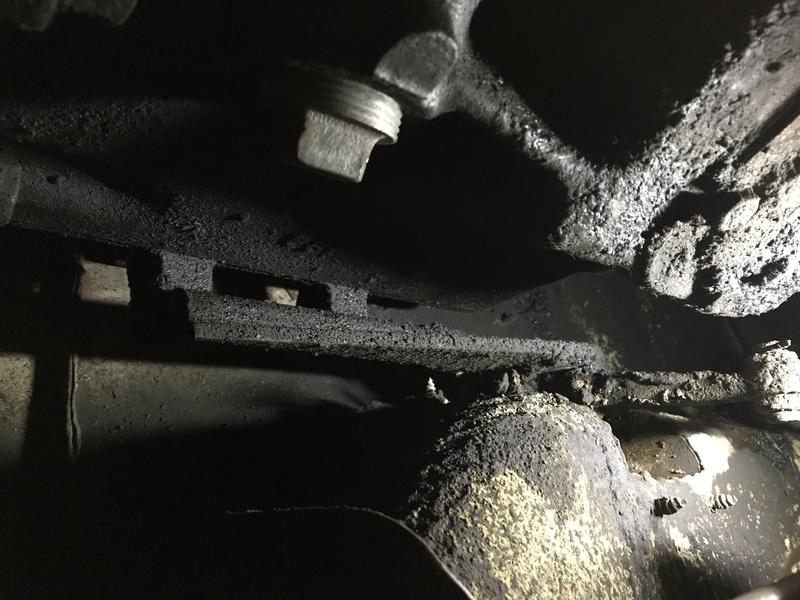

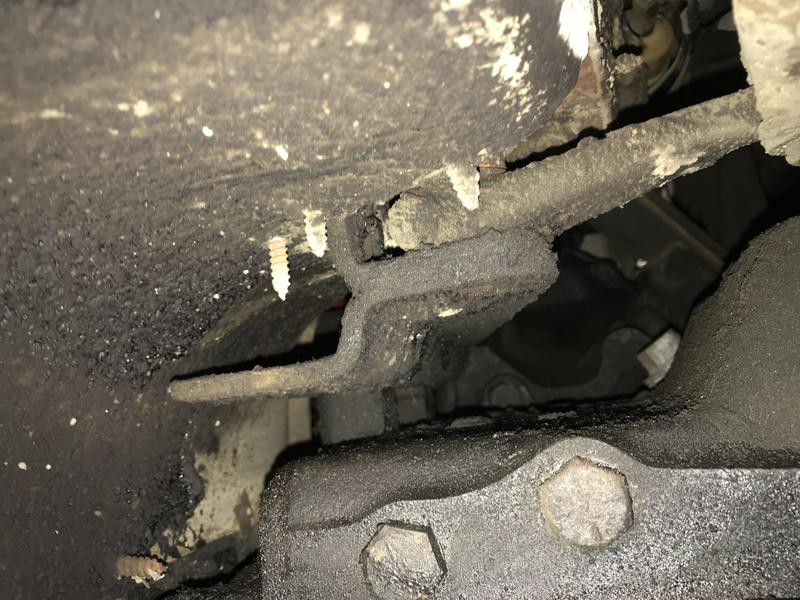

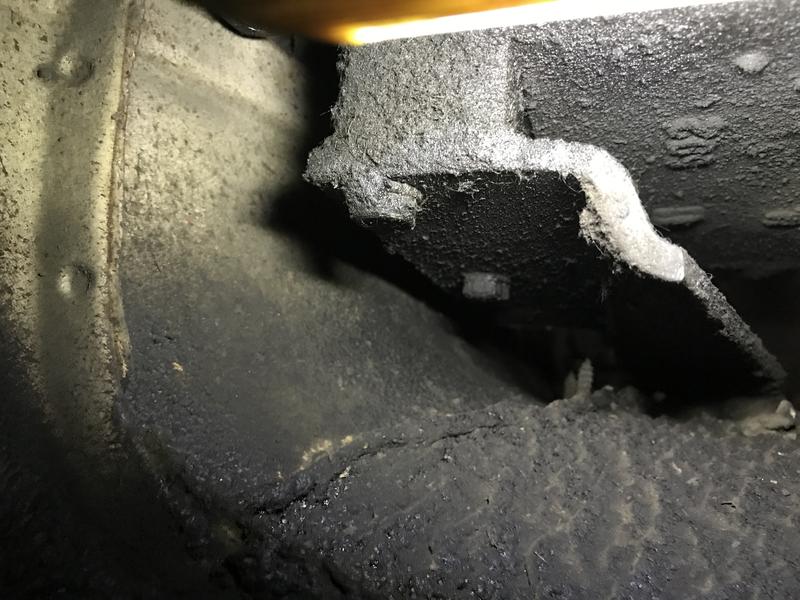

Pictures added.







Last edited:

Navistar

New member
thank you, the bracket in the first two pics that is bolted to the tranny is the only piece i dont have. i should be able to make one from these pics.

now i just have to figure out a new radiator because the on i have is shot and i dont want to spend $500 on fixing the old one.
